Cast Iron Castings in Grey, Ductile and Malleable Grades

Product Details

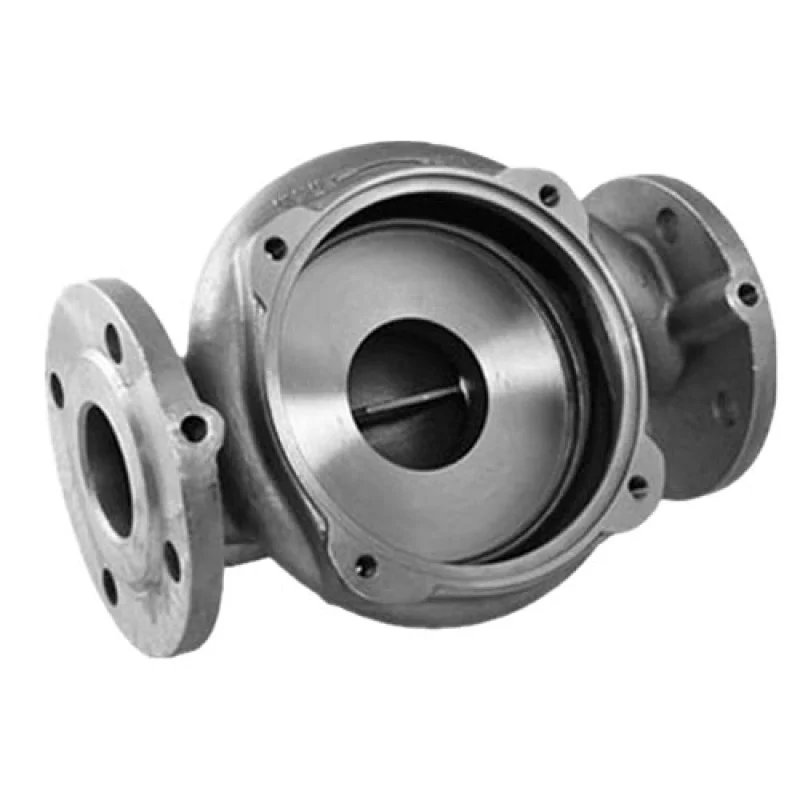

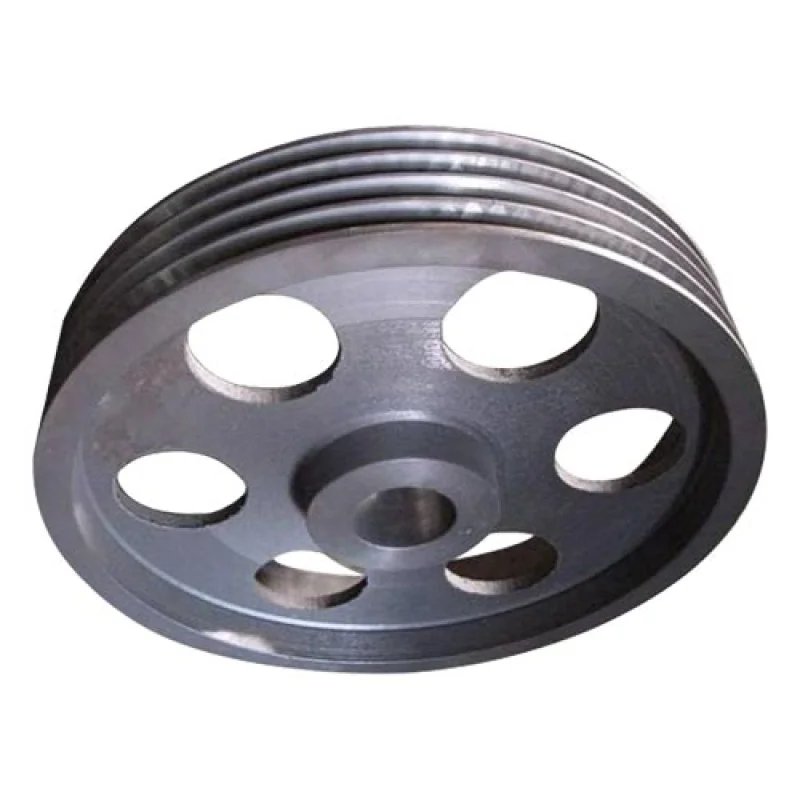

Iron castings get bought for three reasons: they damp vibration, they hold a machined face without moving, and they cost less per kilo than anything else that does both. Which of the three irons you specify decides how the part behaves on the day it is overloaded, and that is the decision most drawings leave blank.

Three Cast Irons, Three Different Failure Modes

Grey iron carries its carbon as flakes. Those flakes act like internal cracks, so the material reaches its limit and breaks with almost no warning. That sounds like a defect and is in fact the point: the same flakes absorb vibration, retain oil on a wear surface, and make the metal easy to cut.

Ductile iron carries its carbon as spheres, produced by adding magnesium to the melt and controlling how it solidifies. Spheres do not concentrate stress the way flakes do, so the material yields and stretches before it fails. Elongation of 15 to 18 percent on the common grades is what lets a ductile bracket bend instead of snapping.

Malleable iron sits between them and is made differently: the part is cast white, then heat treated for days so the carbon precipitates as nodules. It machines and bends well, but thin sections are difficult, the cycle is slow, and most of what malleable iron used to do is now poured in ductile. We still quote it when a customer's legacy drawing names a malleable grade, and we will tell you when ductile would do the same job cheaper.

The mistake to avoid is treating the three as a price ladder, where grey is cheap and ductile is better. They are not ranked. They fail differently, and the drawing should say which failure you can live with.

What Grey Iron Does Better Than Anything Else

Damping. A machine tool base cast in grey iron absorbs vibration several times more effectively than the same shape in ductile iron or steel, which is why surface finish on a precision machine depends more on the base material than on the control system bolted to it. If your part sits under a cutting tool, a pump or a gear mesh, grey iron is doing work that no strength specification captures.

Wear. The graphite flakes leave tiny reservoirs in the surface. A grey iron brake drum or slideway keeps a film of oil where a steel surface would scuff and seize. This is why grey iron survives in sliding contact long after stronger materials have galled.

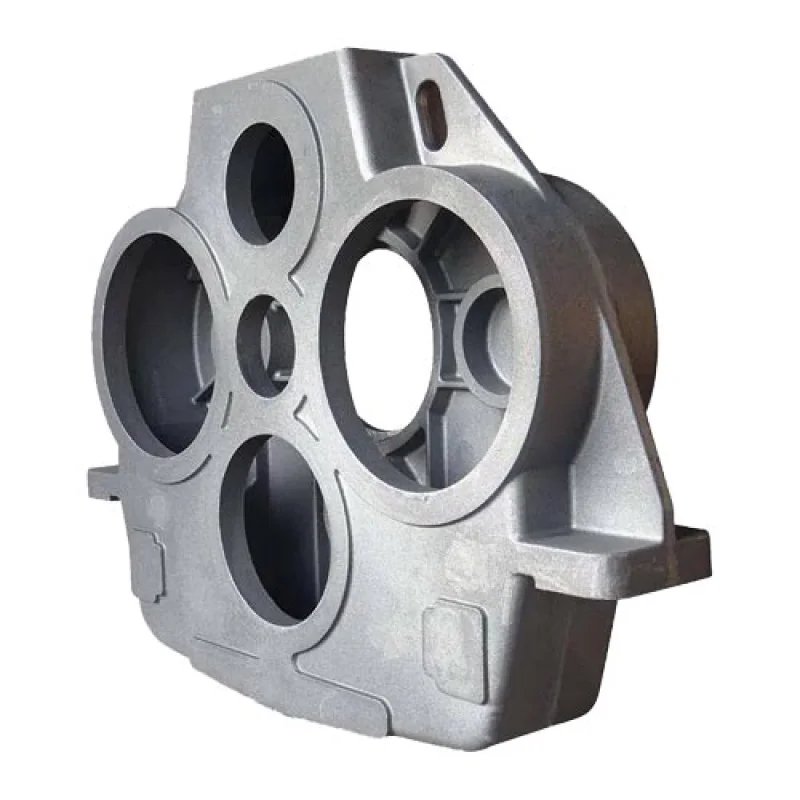

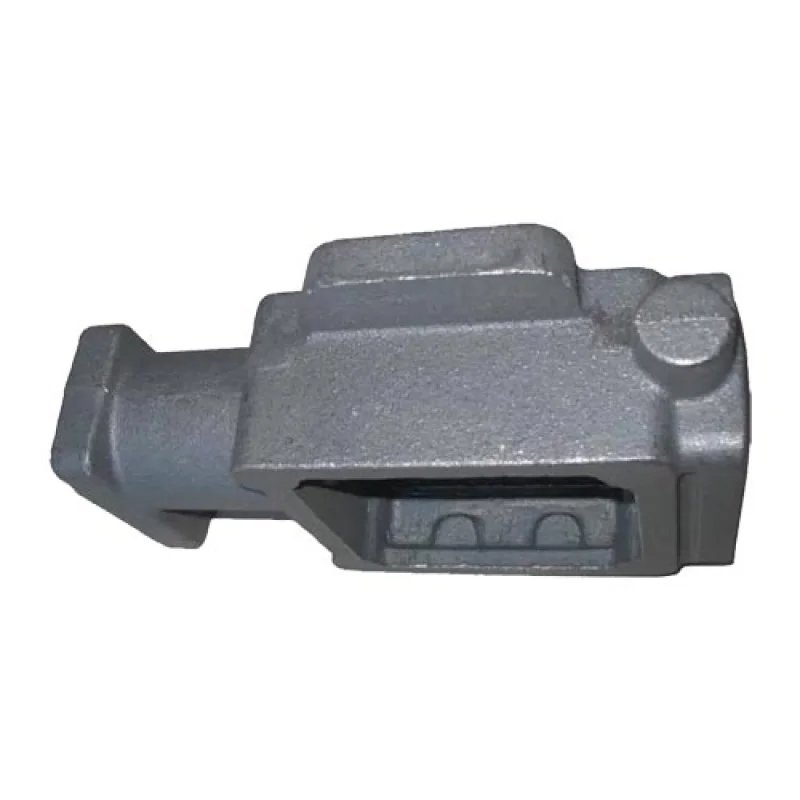

Stability. A properly stress-relieved grey iron casting does not move. It has no residual stress fighting a machined face, and its thermal expansion is low enough that a bore stays a bore across a shift. For a gearbox housing where two bearing bores must stay coaxial for a decade, that property is worth more than 100 MPa of tensile strength.

Cost. Grey iron melts at a lower temperature, needs no magnesium treatment, no inoculant control beyond the basics, and machines faster. On a 12 kg housing, the difference between grey and ductile is often 15 to 25 percent of piece price before machining.

Where Ductile Iron Replaces Steel, and Where It Does Not

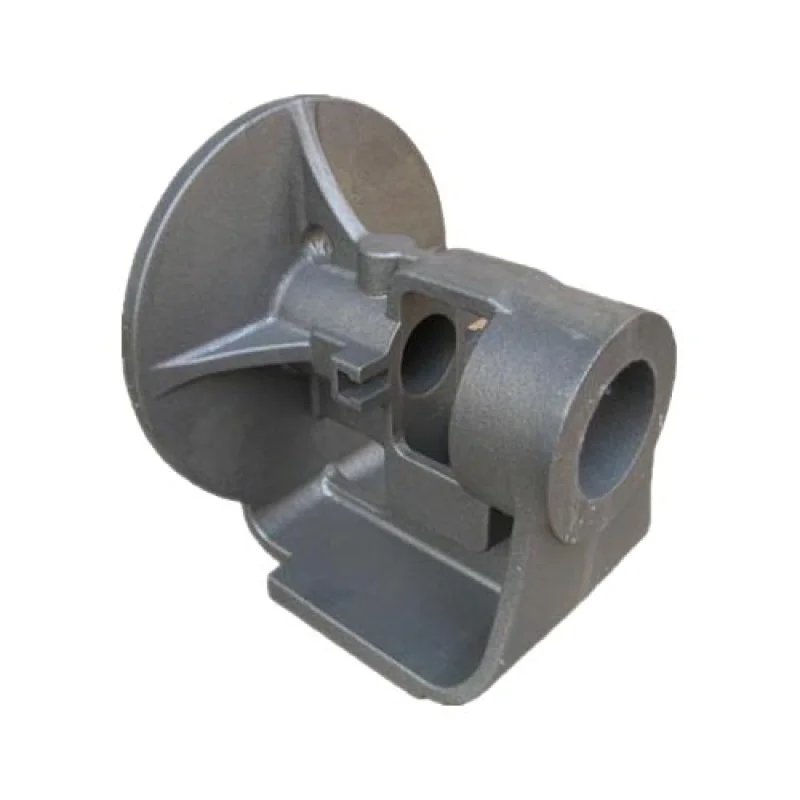

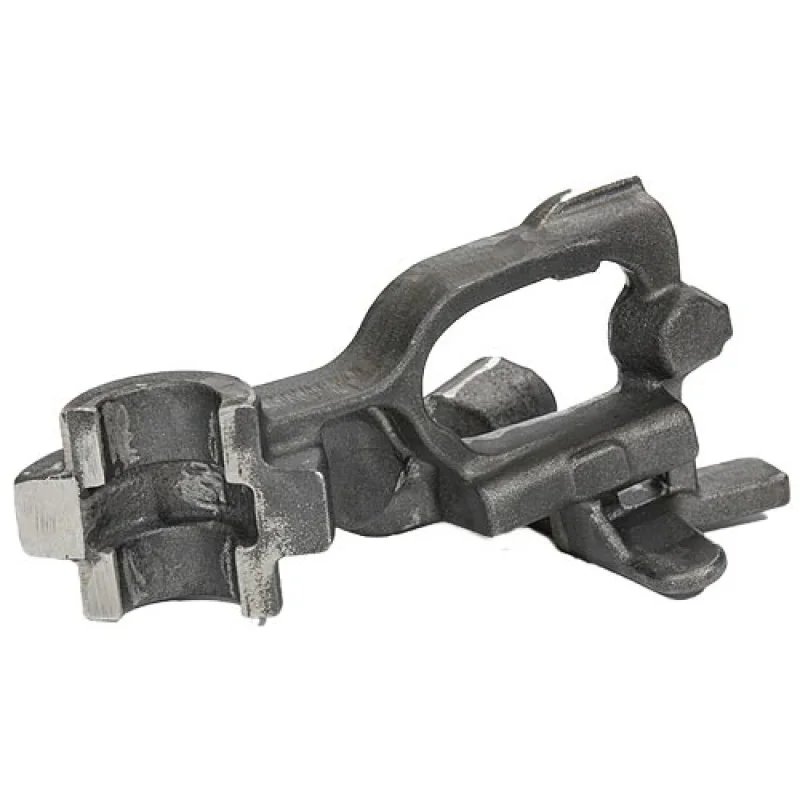

Ductile iron does a good impression of steel in the places that matter. A welded bracket assembly of five plates becomes one casting with ribs following the load path, and the finished part is usually lighter because nothing is sized around a plate thickness that happened to be in stock. Machining drops too, since the bore and the mounting face come out of the mould in the right relationship.

Three places it does not belong. Anything that must be welded after casting, because ductile iron welds poorly and a repaired joint is not the same material. Anything that needs more than about 18 percent elongation, where steel has no substitute. And anything running below roughly minus 20 degrees Celsius, where impact values fall off and we ask for Charpy data at the service temperature before quoting, rather than assuming the room-temperature certificate covers it.

Wall, Weight and the Tolerance You Can Actually Hold

Here is the window we work in. Numbers are for sand casting on our automatic line unless noted.

Pour weight, automatic clay sand line0.5 to 50 kg
Pour weight, lost foam50 to 200 kg
Minimum wall, grey iron4.5 to 5 mm on parts under 5 kg
Minimum wall, ductile iron5 mm, 6 mm if the section carries pressure
As-cast toleranceISO 8062 CT10 to CT13, depending on size
Machined toleranceplus or minus 0.02 mm on bores, 0.05 mm on faces
As-cast surfaceRa 12.5 to 25 micrometres after shot blasting
Machined surfaceRa 1.6 to 3.2 micrometres
Draft angle1 to 1.5 degrees standard, 0.5 degree at extra cost
Annual capacity10,000 tonnes

A drawing that asks for a 3 mm wall on a 20 kg part is not impossible, it is expensive and slow, and the first sample will show why. We would rather say that at quotation than after the pattern is cut.

Reading a Drawing the Way a Foundry Does

When a drawing arrives, the first thing we look for is not the tolerance block. It is where the parting line has to go, because that single decision sets draft, core placement and whether a hole can be cast or must be drilled.

The second is the hot spot. Thick sections cool last, and the last metal to freeze has nowhere to draw from, so it shrinks into porosity. A 20 mm boss standing on an 8 mm wall is a hot spot by definition. The fix is usually free at the drawing stage: core the boss, add a rib, or taper the wall into it. The same fix after tooling costs a new pattern.

Third is machining allowance. Castings are not accurate enough to leave 0.5 mm and hope. We normally add 2 to 3 mm on faces that will be machined, more on large faces where distortion is likely, and we mark on the quotation which faces we assumed would be cut. If your drawing shows a machined symbol on a face we left as-cast, that is a conversation worth having before the pattern exists.

Fourth is the corner. Sharp internal corners concentrate stress and are hard to fill. A 3 mm fillet costs nothing in the mould and removes both problems.

Machining and Coating: Which Faces Earn the Money

Machining is where a cheap casting becomes an expensive part, so it is worth deciding deliberately which faces need it. Bearing bores, sealing faces, mounting pads and anything that sets a fit: yes. Cosmetic surfaces, non-critical edges and clearance holes: usually no, and casting them to tolerance saves a setup.

The datum matters as much as the tolerance. If the drawing dimensions everything from a machined face, we machine that face first and locate from it for every subsequent operation. If it dimensions from a cast surface, the stack-up includes casting variation, and a tight tolerance at the far end becomes impossible to hold without a fixture that finds the casting's own centre.

Coating follows machining, not the other way round, with one exception: hot-dip galvanizing adds 60 to 90 micrometres and will close a tapped hole, so threads are either masked or chased afterwards. Paint, powder coat and zinc-rich primer have no such effect but do need a blasted surface to key to, which is why we shot blast before coating rather than after.

What We Check, and What We Ask You to Check

Every heat gets a chemical analysis and a tensile test on a cast coupon, so the certificate describes your metal and not a generic lot. Ductile heats also get a metallographic check for nodularity and graphite size. Every casting gets a dimensional check against the drawing and a visual inspection for misruns, cold shuts, sand inclusion and porosity on machined faces.

What we do not do in-house is volumetric inspection. Ultrasonic and radiographic examination are available through partners when a drawing calls for them, and we quote that as a separate line rather than burying it. Fatigue testing, salt spray and pressure testing beyond a simple hydrostatic check are the same: specified, quoted, subcontracted.

The other half of inspection is yours. First-article approval is the point where a misunderstanding is still cheap, and it is worth measuring the sample the way you will measure production, not the way the drawing is dimensioned.

Frequently Asked Questions

What is the difference between grey iron and ductile iron in one sentence?

Grey iron has flake graphite and breaks without warning, ductile iron has spherical graphite and bends before it breaks; the sphere shape is produced by a magnesium treatment during pouring.

Can you cast a part that is currently welded from steel plate?

Usually yes, and the casting is often lighter and cheaper to machine. Send the weldment drawing and the loads; we will say at quotation whether the geometry converts cleanly or whether a rib pattern has to change first.

Which grade should I specify if the drawing only says cast iron?

Share the load case and the failure you can tolerate. Static and vibration-bound parts go grey, loaded and impact parts go ductile, and we will state the cost difference rather than picking the cheaper one silently.

How much draft do you need on a deep pocket?

One to one and a half degrees per side is standard. Below half a degree the pattern needs extra polishing and the mould is more likely to tear, which shows up as a rough patch on the wall.

Do you supply the patterns, and who owns them?

We make them and they are billed once. Ownership stays with the customer who paid for them, and we store them for repeat orders at no charge while the part is active.

What is the minimum order for a new casting?

There is no fixed minimum, but a first run under about 200 pieces carries the same tooling cost spread over fewer parts. We will show the crossover quantity when we quote.
