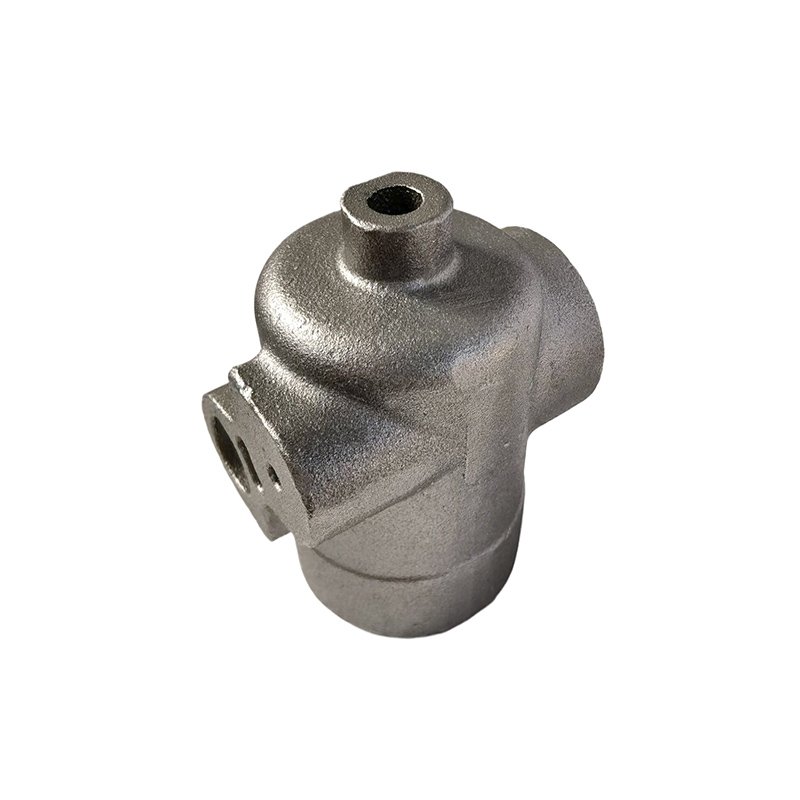

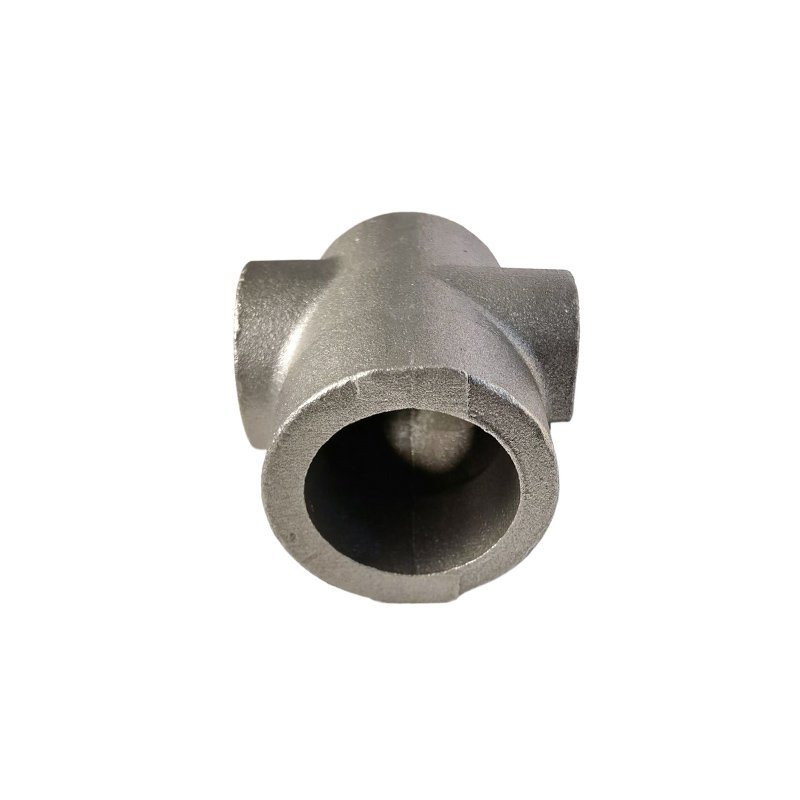

Cast Iron Brackets and Bearing Housings for Automotive

A bearing housing is a location. It puts a shaft in a place, holds it there against a load, and lets it rotate without wearing out. Everything about the casting serves that one purpose, and a housing that is strong but 0.1 mm off-axis will destroy a bearing in a month.

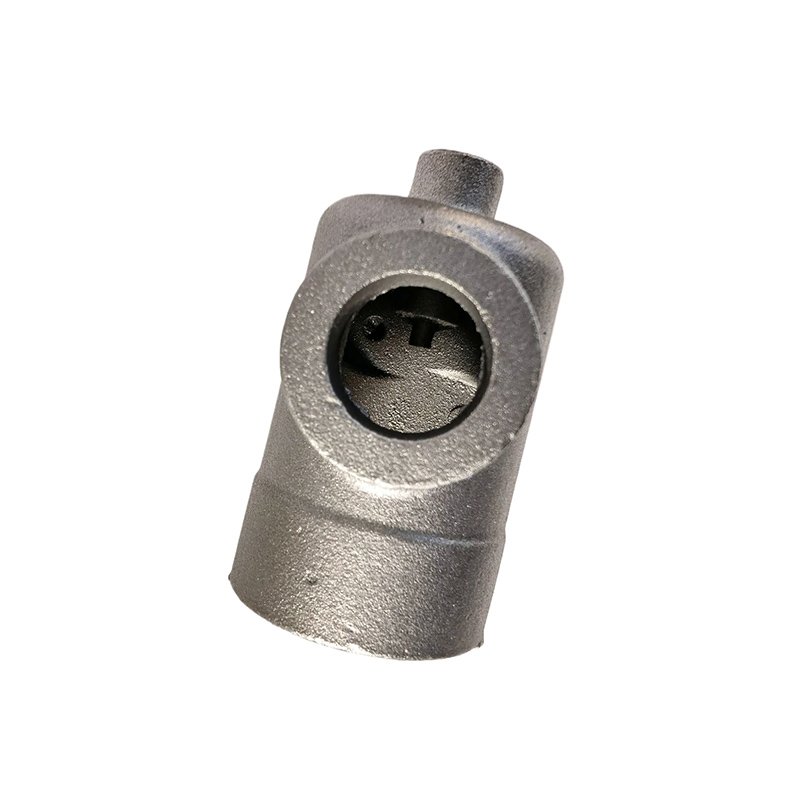

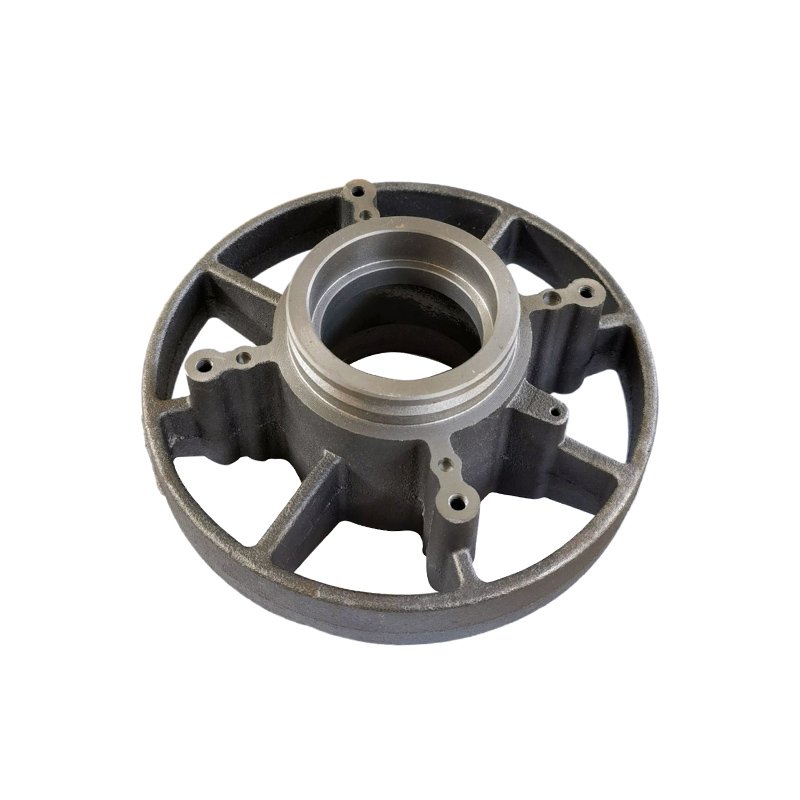

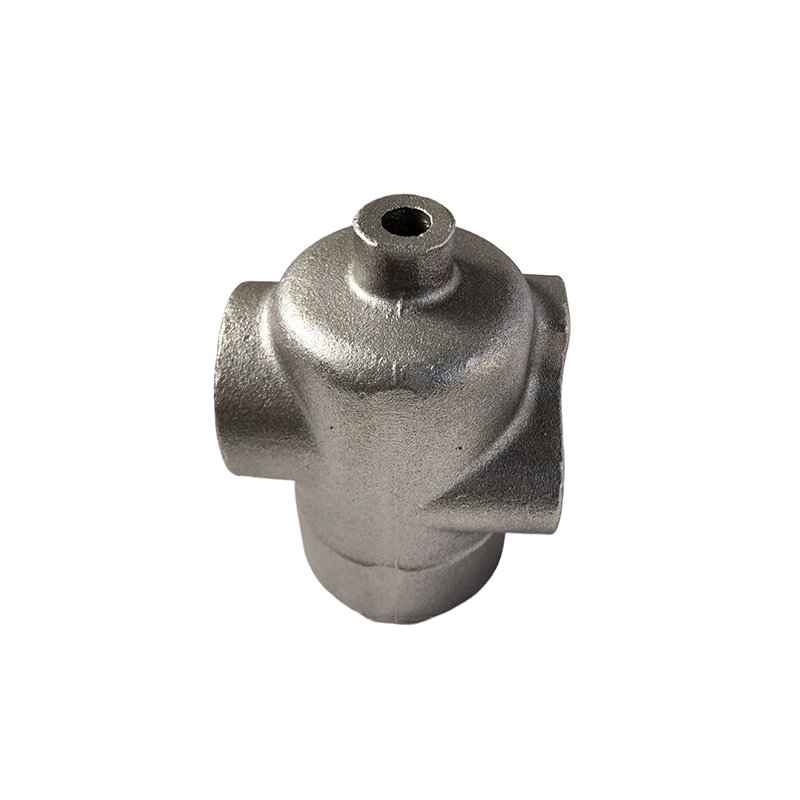

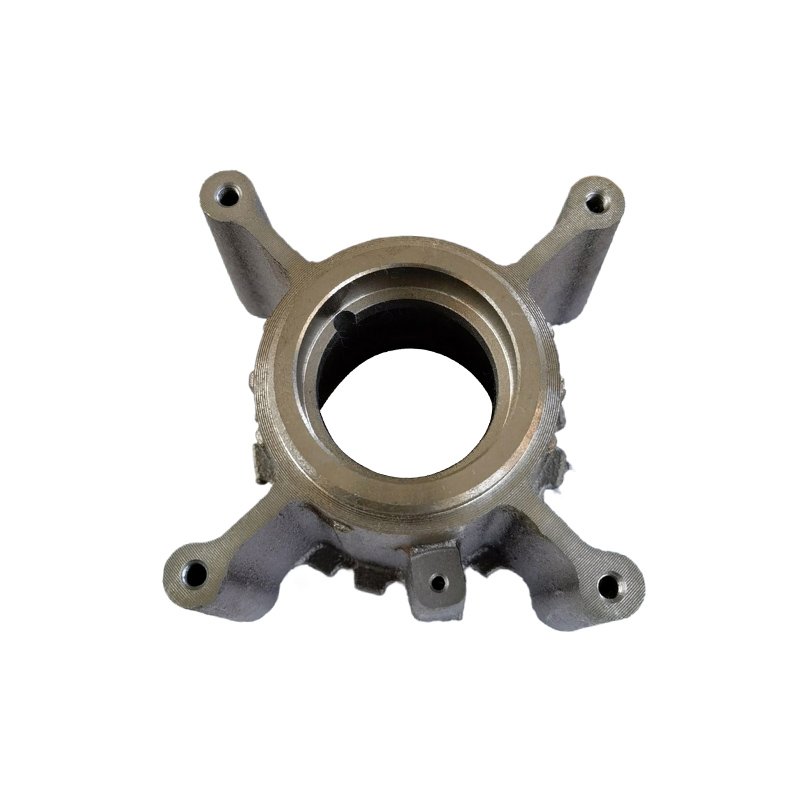

A Bearing Housing Is a Location, Not a Box

The bore position, the bore diameter and the squareness of the mounting face to the bore are the three dimensions that matter. Strength is almost never the limiting factor; misalignment is.

A single bearing housing holds one shaft. A pair of housings holds a shaft between them, and then the two bores have to be coaxial with each other, which is a machining and assembly problem rather than a casting one.

Where the housing is split, the two halves have to match at the joint, and the joint face has to be square to the bore. A split housing that is 0.05 mm out at the joint pinches the bearing.

Coaxiality: the Tolerance That Decides Bearing Life

A ball bearing tolerates about 0.05 mm of misalignment between its inner and outer rings before life starts to fall. A cylindrical roller bearing tolerates less, and a tapered roller bearing tolerates more if it is adjusted correctly.

That number sets the housing tolerance. If the housing bore is 0.03 mm off the mounting datum, and the shaft is 0.02 mm off its own datum, the bearing sees 0.05 mm, which is the limit.

So we machine the bore and the mounting face in one setup, from a datum defined on the casting. If the datum is a cast surface, the variation in the casting enters the stack, which is why we prefer a machined datum face and will ask for one on the drawing.

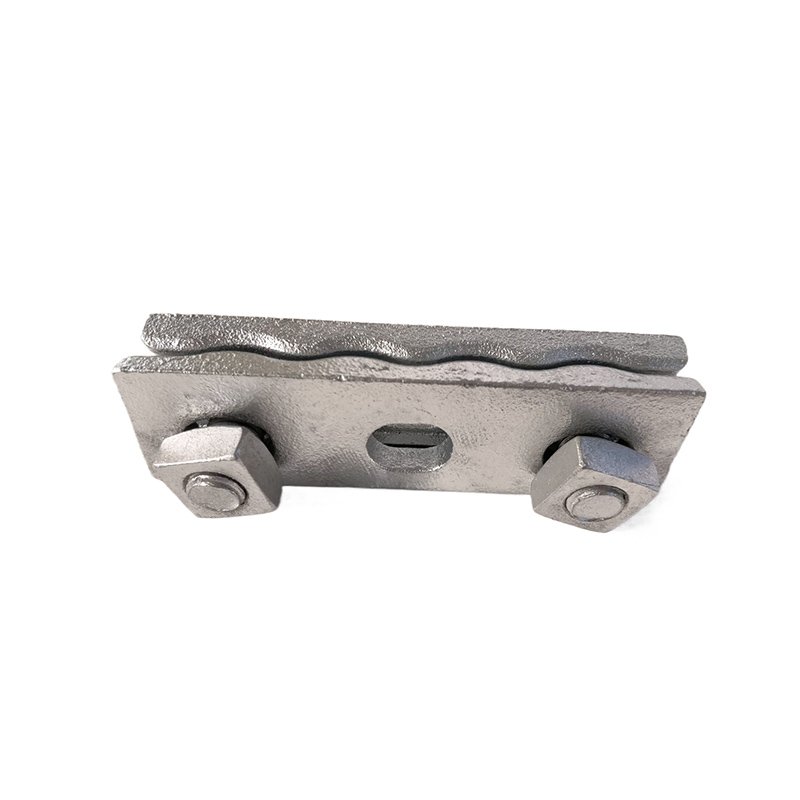

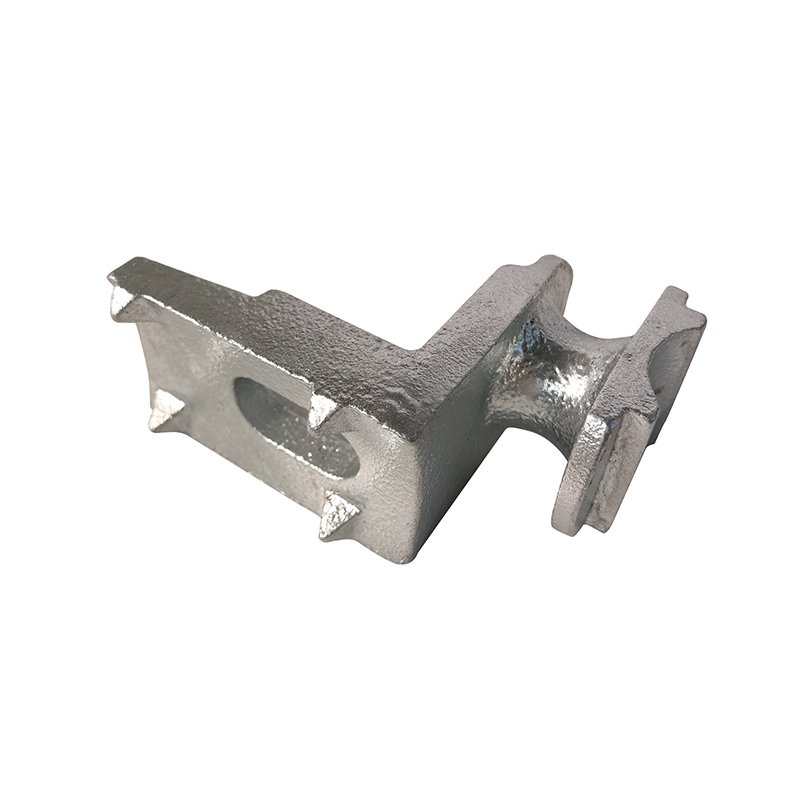

Bracket Stiffness and the Load It Transfers

An automotive bracket usually transfers a load from a component to the body or the subframe, and it does so through bends and bolts. The load is often fatigue, not static: a hundred thousand small reversals from road input.

Stiffness matters because a flexible bracket lets the component move, and movement changes the alignment of everything connected to it. An engine mount bracket that flexes changes the driveline angle under load.

Ductile iron at 450 MPa with 15 percent elongation is the default. Grey iron is used where the bracket is a mounting pad rather than a load path, and where cost matters more than fatigue.

The section design rule is the same as anywhere: gradual transitions, generous fillets, and ribs that follow the load rather than the moulding convenience.

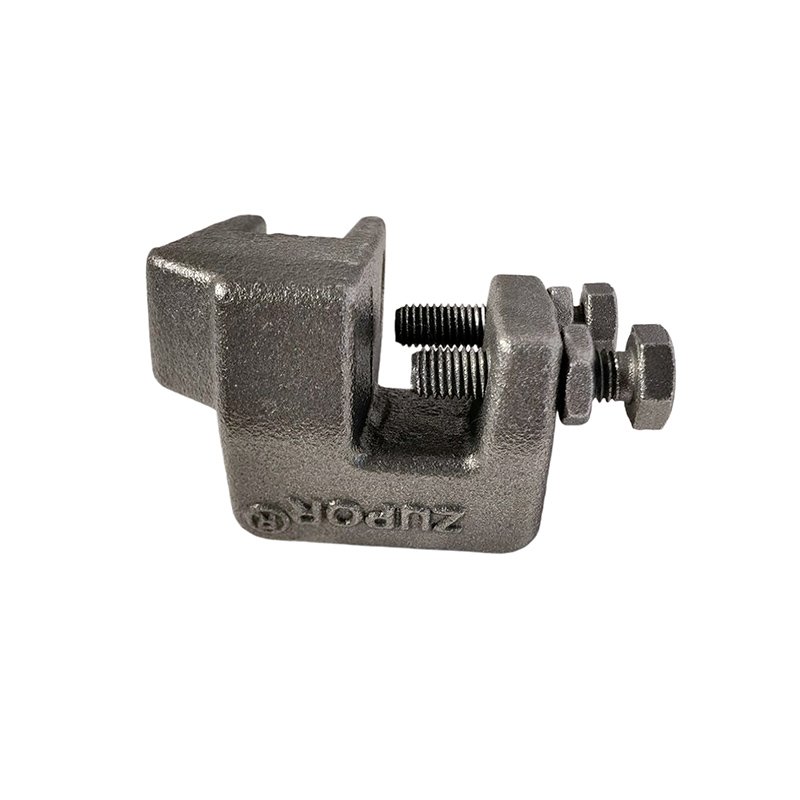

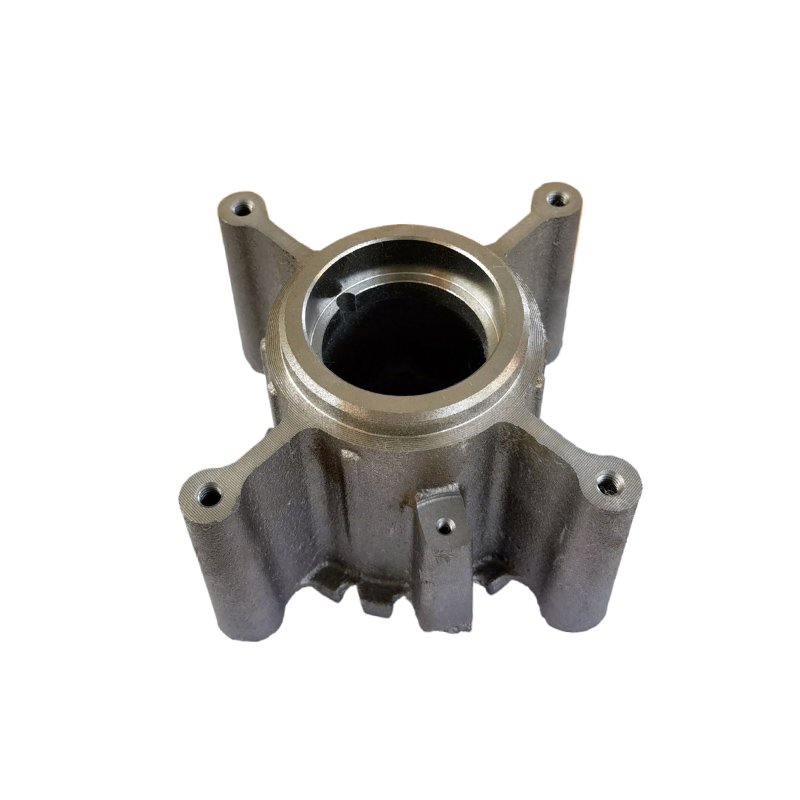

Bolt Bosses, Preload and the Crush Zone

A bolt boss carries the clamp load of the bolt, which on an M10 grade 10.9 is around 25 kN. That load passes through the boss and into the bracket, and the boss has to be strong enough not to crush and stiff enough not to dish.

The boss also has to give enough thread engagement. In cast iron, the rule is 1.5 times the nominal diameter for a tapped hole, which on an M10 means 15 mm of full thread.

And the boss has to be fed. A boss standing on a thin wall is a hot spot, and a hot spot in a bolt boss means the bolt pulls through a porous section. We core the boss or add a taper, and we check the section on the first article.

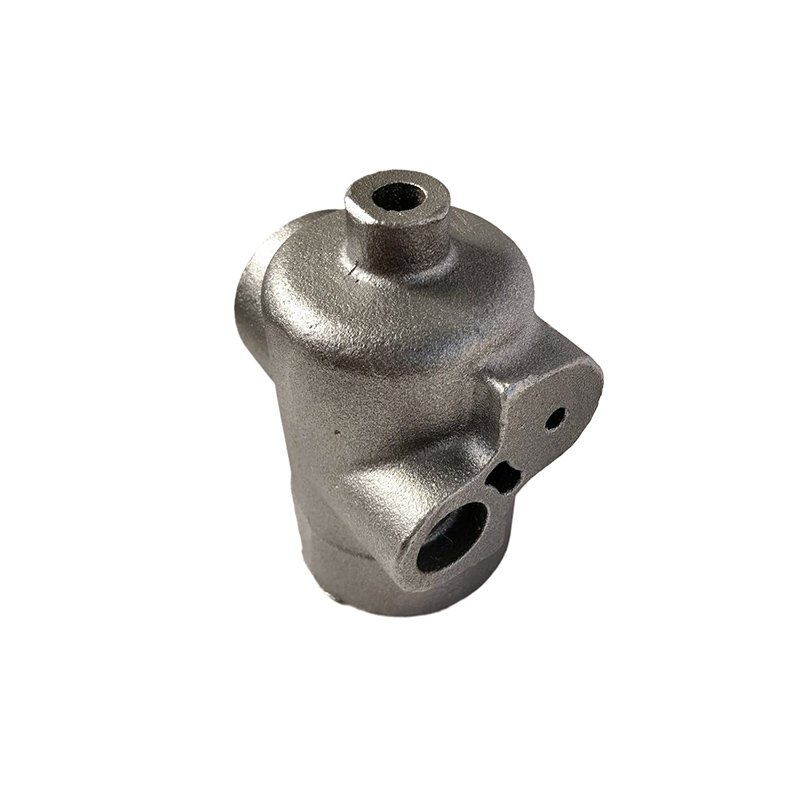

Machining Both Sides in One Setup

Automotive housings often have features on two opposite faces: a bore on one side, a mounting pad on the other. Machining them in two setups introduces the fixture error twice.

Where the part allows, we machine both in one setup on a horizontal machining centre with a tombstone fixture, so the relationship between the bore and the pad is set by the machine, not by the fixture.

Where the geometry does not allow it, we use a common datum and accept a small stack. The decision is worth discussing at quotation, because it affects both price and the tolerance we can promise.

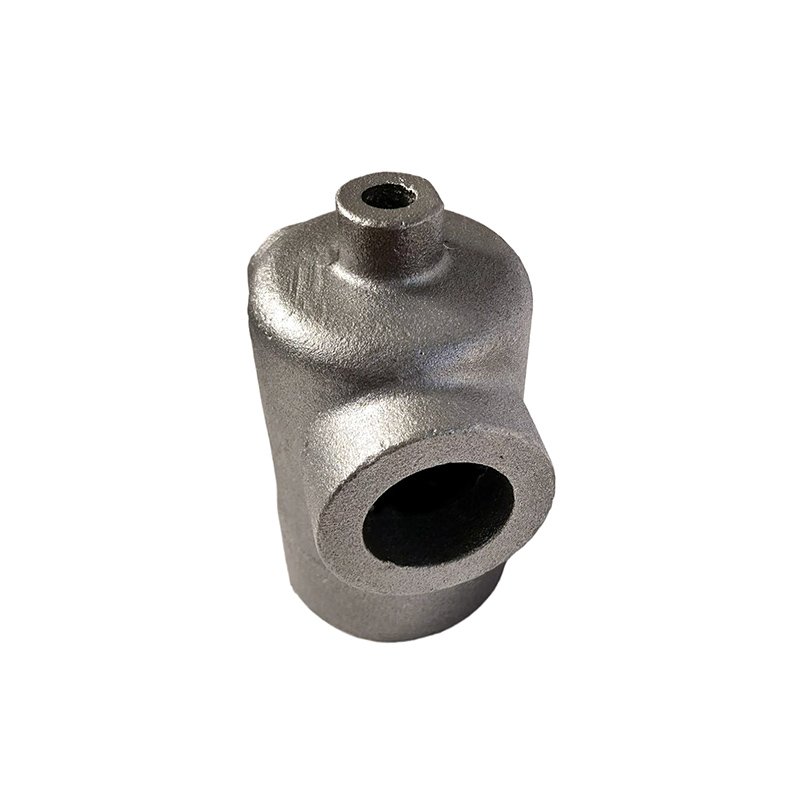

Casting Soundness Where the Bore Goes

The bore is a machined feature, and machining exposes whatever is underneath. A shrinkage cavity that was 2 mm below the surface becomes a void in the bearing seat, and the bearing has a soft spot under it.

That is why the section around the bore has to be fed properly, and why a housing with a thick boss around a thin wall is a design warning. We would rather add a riser and a chill than discover the problem at machining.

On critical housings, we radiograph the first article at the bore section, and we will say at quotation whether that is included.

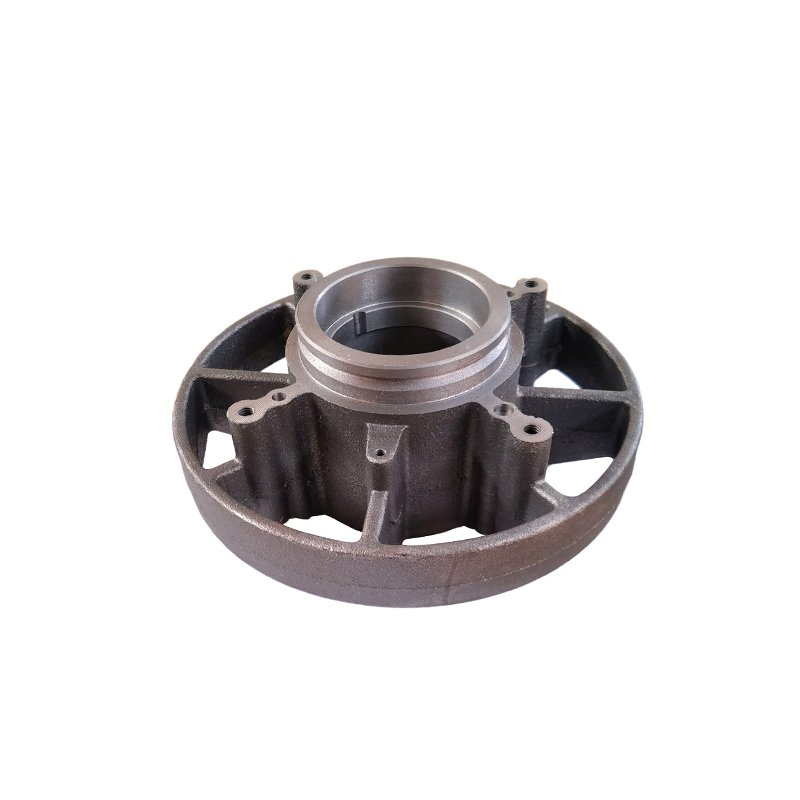

Weight Reduction Without Losing Stiffness

Automotive buyers want weight out, and a casting is a good place to find it. Three moves, in order of return.

Core out the thick sections that are only thick because the pattern was easy. A 20 mm solid pad that holds a 8 mm bolt can be a 6 mm wall with a boss.

Move material from the neutral axis to the flanges. A housing with thin webs and thicker flanges is stiffer per kilo than a uniform box.

Replace a solid bracket with a ribbed one. The ribs carry the load and the material between them does not.

The limit is casting: below 4 to 5 mm the metal may not fill, and a wall that is too thin will distort during cooling.

Validation: What an Automotive Buyer Expects

An automotive or tier-one buyer will ask for more than a dimensional report. Typically: material certification, a dimensional layout on the first article, a capability study on critical features, and a control plan for series production.

We can supply the material certification and the layout. A capability study needs production data over time, which comes after the first batches, not before.

Fatigue and durability testing are the customer's or the tier-one's responsibility, because they depend on the duty cycle, which the foundry does not know.

Being clear about which part of the validation we own is what makes a first project go smoothly.

Bearing Fit, Clearance and the Heat That Changes Both

A bearing housing bore is machined to a tolerance that gives a specific interference with the bearing's outer ring. That interference is what stops the ring from spinning, and it is calculated at 20 degrees.

An engine or a gearbox housing runs hotter than that. Aluminium housings grow faster than steel bearings, which is why an aluminium housing is machined tighter cold. An iron housing grows at a rate close to the bearing steel, so the interference changes less, which is one reason iron is used for hot applications.

The bore also distorts when the housing is bolted down. A housing with a thin flange will ovalise when the bolts are tightened, and an oval bore pinches the bearing at two points. A 0.02 mm ovality is enough to halve a bearing's life.

That is why we check the bore after bolting on the first article, and not only on the free part. It is a step that is easy to skip and expensive to discover in a durability test.

As-Cast Stock and the Machining Budget

Every machined face needs stock, and stock is weight, cost and a machining pass. Allocating it deliberately is one of the cheaper savings on an automotive part.

A face that will be machined flat needs 2 to 3 mm. A face that will only be spot-faced for a bolt washer needs 1.5 mm. A face that is machined for appearance needs 1 mm, because the cut is light and the surface is already close.

Giving every face 3 mm is safe and wasteful, and on a 2 kg bracket it can add 150 grams and a minute of cycle time.

The other side of the budget is datum choice. A part machined from a cast datum needs more stock on the functional faces, because the cast surface varies. A part with a machined datum face needs less, and the first operation pays for itself in reduced stock everywhere else.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What tolerance do you hold on a bearing bore?

Plus or minus 0.02 mm on diameter, with cylindricity within 0.01 mm on a machined bore. Position relative to the mounting datum is held to 0.05 mm.

Can you machine a split housing as a matched pair?

Yes. The two halves are machined as an assembly, dowelled and marked, and supplied as a set. They are not interchangeable with another pair.

Do you supply the bearing?

No. We machine to the bearing supplier's housing tolerance and can fit a bearing if you supply it.

What grade is used for an engine mount bracket?

Ductile iron, usually EN-GJS-450-10 or 500-7, chosen for fatigue rather than strength.

Can you do a PPAP submission?

We can supply the dimensional results, material certification and control plan. A full PPAP with capability studies needs production history, which follows the first batches.

What is the lead time for an automotive sample?

Four to six weeks including a machined first article. A new pattern adds two weeks.
