Custom Car Parts Cast in Iron for OEM and Aftermarket

Product Details

Car parts come to a foundry from two directions. An OEM sends a drawing and a volume forecast. An aftermarket distributor sends a worn part in a box and asks whether it can be made. Both are legitimate, and they need different processes.

Two Customers: OEM and Aftermarket

The OEM programme is defined by the drawing, the PPAP and the schedule. The part is one of thousands, the volume is forecast three years ahead, and the engineering change process is formal.

The aftermarket programme is defined by fit and function. There is often no drawing, the original may be obsolete, and the volume is small and uncertain. What matters is that the part bolts on and works.

Trying to run an aftermarket part through an OEM process wastes time; trying to run an OEM part through an aftermarket process produces a part nobody can certify. We run both, on separate paths.

Reverse Engineering a Part With No Drawing

A worn part is a measurement problem before it is a casting problem. It has worn where it moved, deformed where it was overloaded, and corroded where it was exposed.

The process is: measure the part, identify the surfaces that were originally machined, reconstruct those surfaces as nominal, and infer the rest from symmetry and function. A bracket that has worn 0.3 mm at a pivot is not a bracket with a 0.3 mm larger hole; it is a bracket with a nominal hole and a worn one.

We produce a drawing from that reconstruction and send it for approval before cutting a pattern. It is the single step that prevents a batch of parts that fit a worn sample and not a new machine.

Why Aftermarket Parts Fail Differently

An OEM part is designed with a known load and a known life. An aftermarket part is often a copy of a part that was designed for a different vehicle, fitted to a machine that has been repaired three times.

The failures we see in aftermarket castings are usually not material failures. They are fit failures: a hole pattern that is 1 mm off, a boss that fouls an adjacent component, a thickness that is 2 mm too much and will not clear.

The lesson is that a sample is not enough. Measure the mating parts too, or ask the distributor what the part fits, and check the drawing against the vehicle.

The Parts We Cast Most

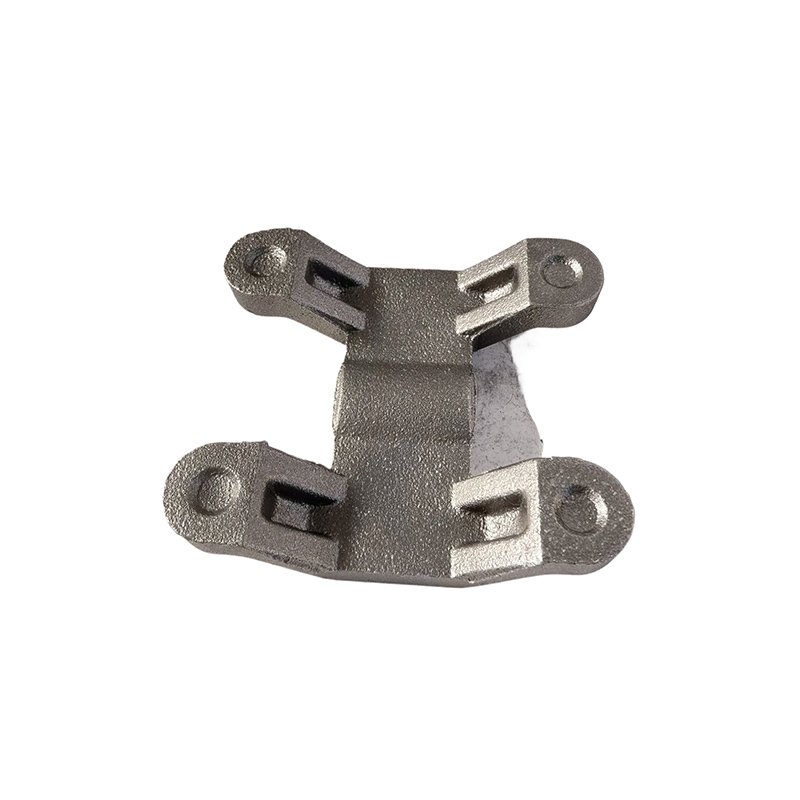

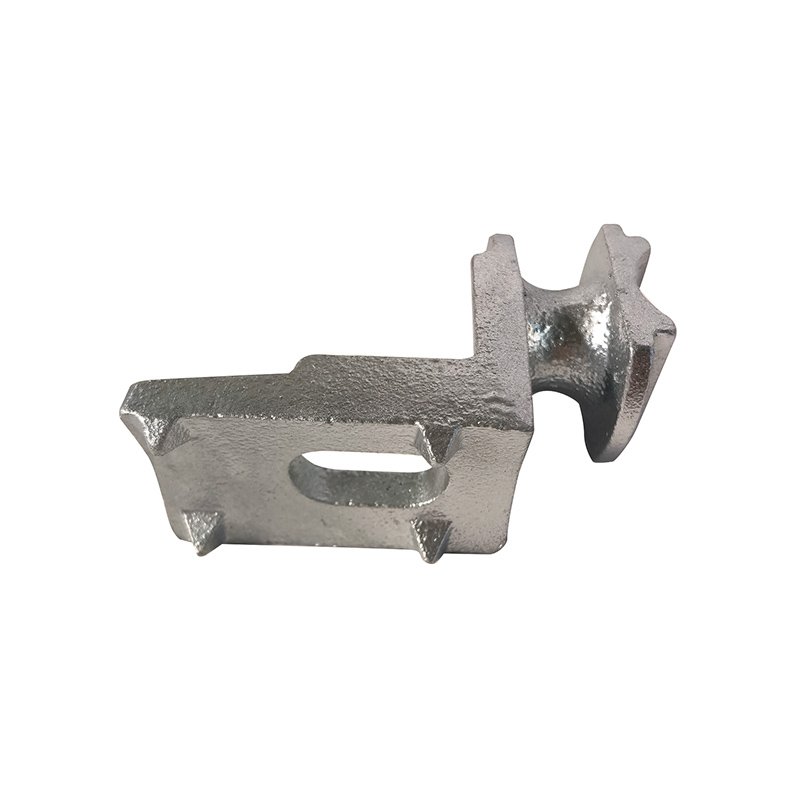

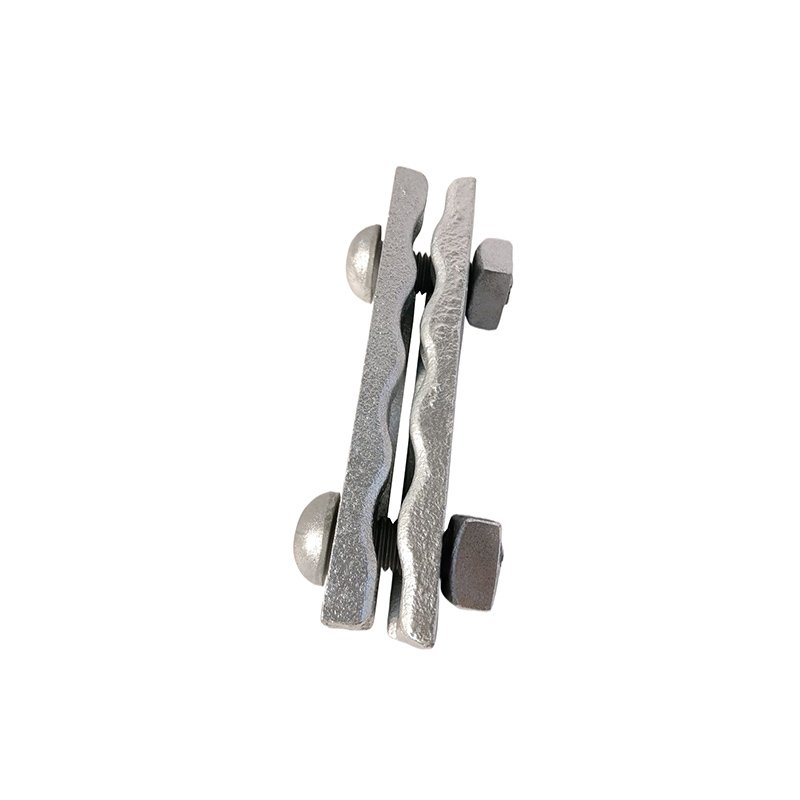

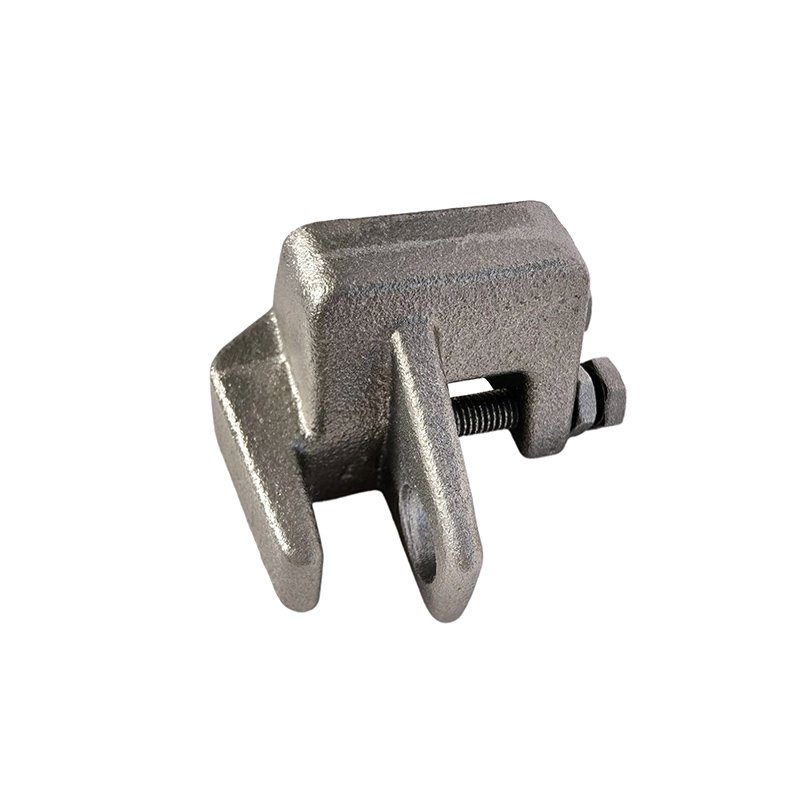

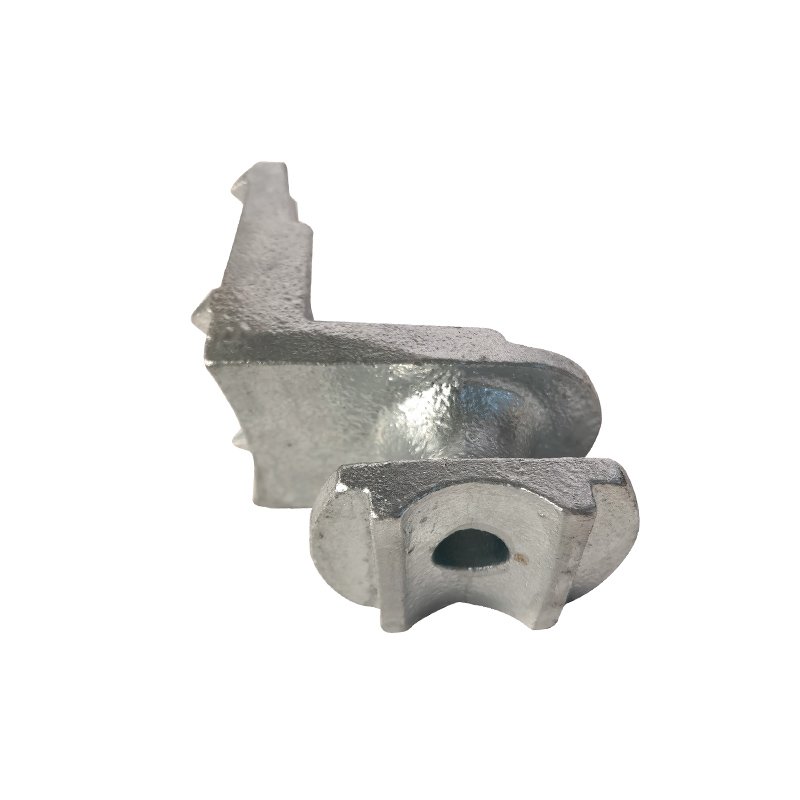

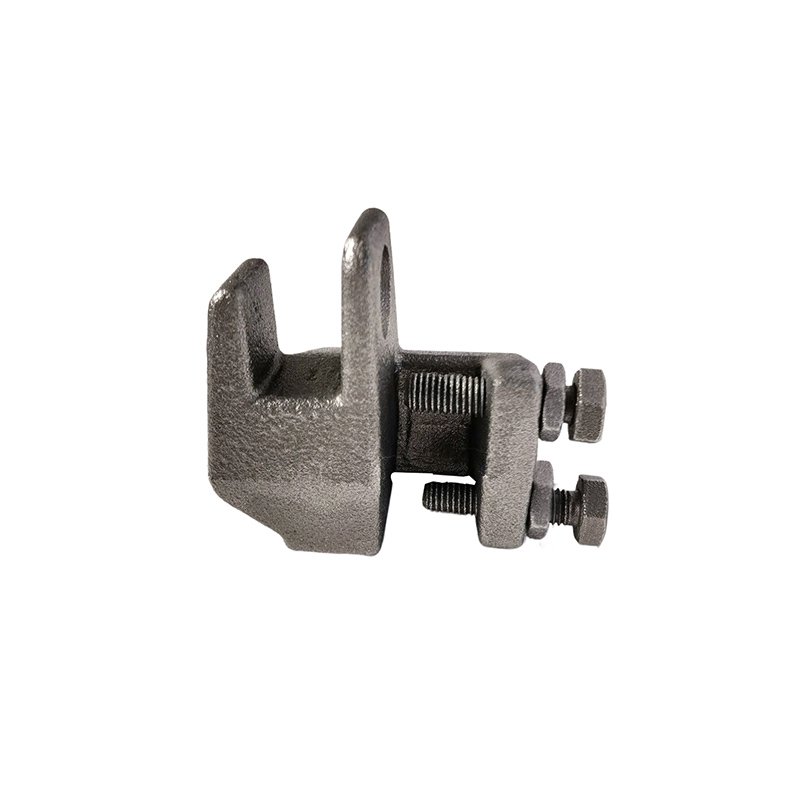

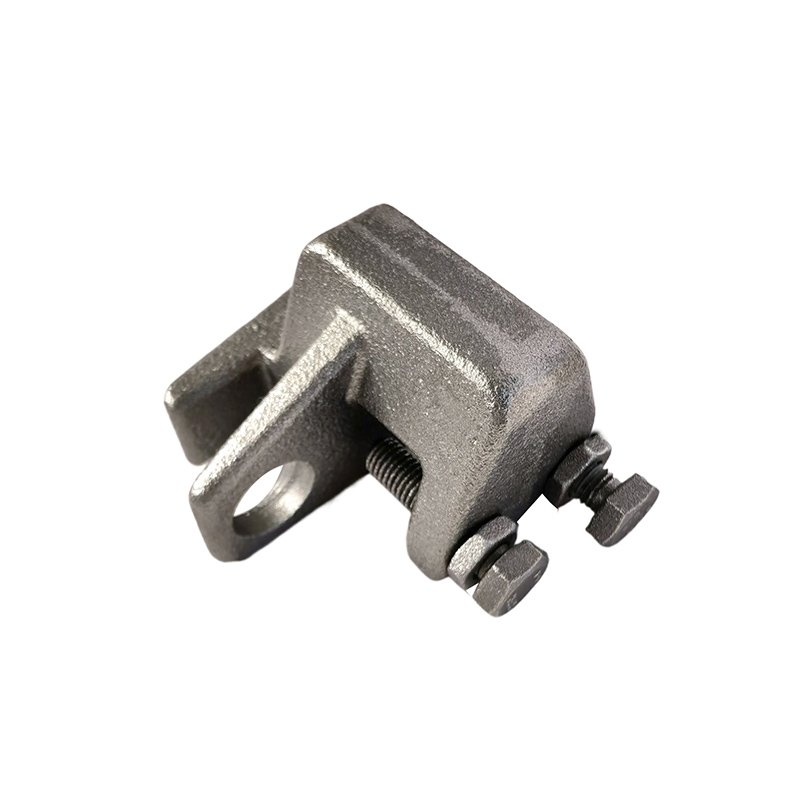

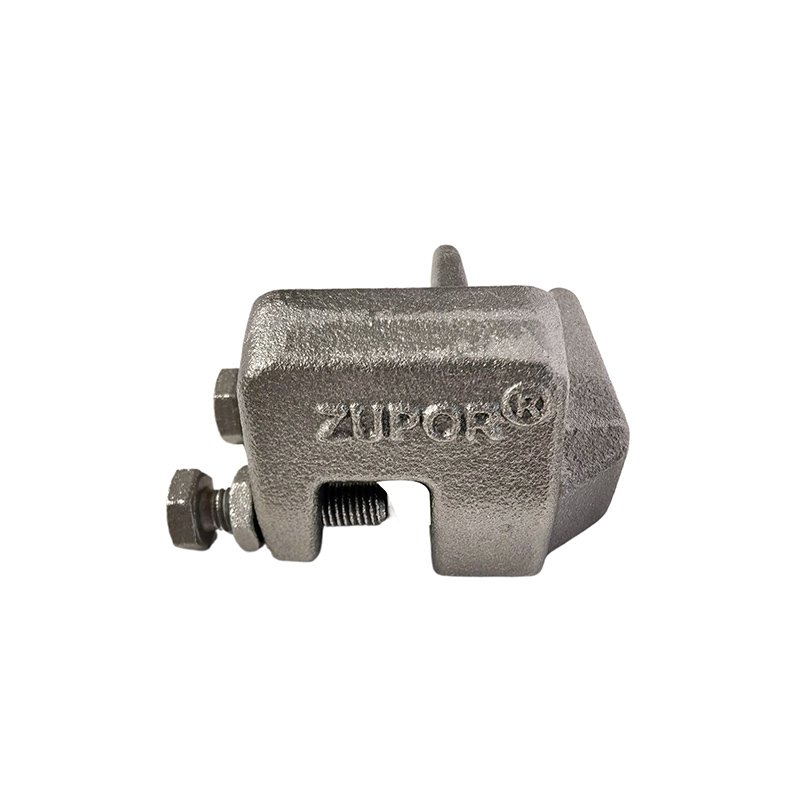

Brackets and supports: alternator brackets, power steering pump brackets, exhaust hangers, engine mounts, transmission supports. These are ductile iron when they carry load, grey when they do not.

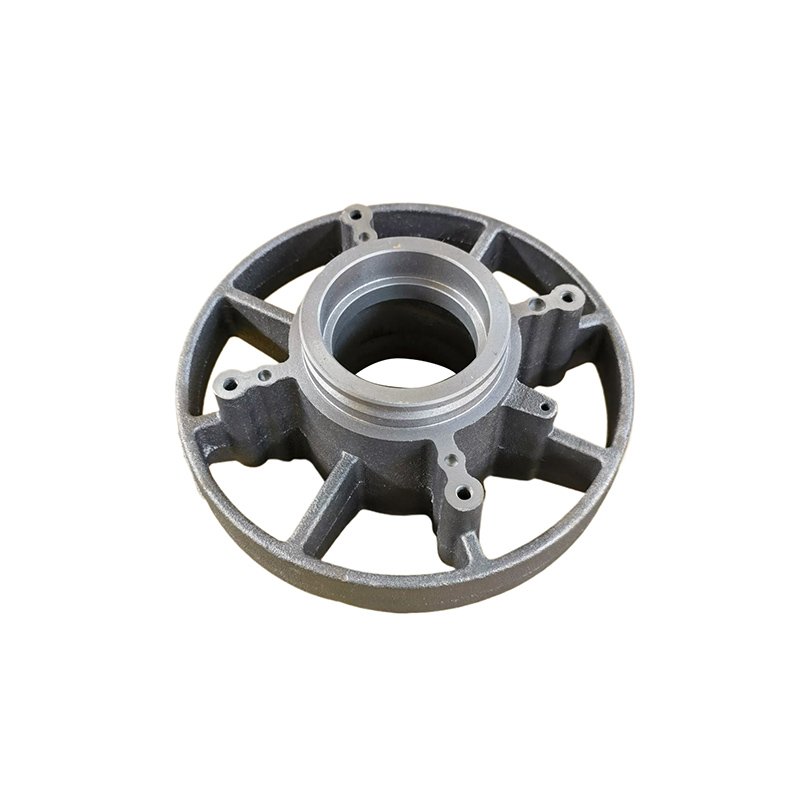

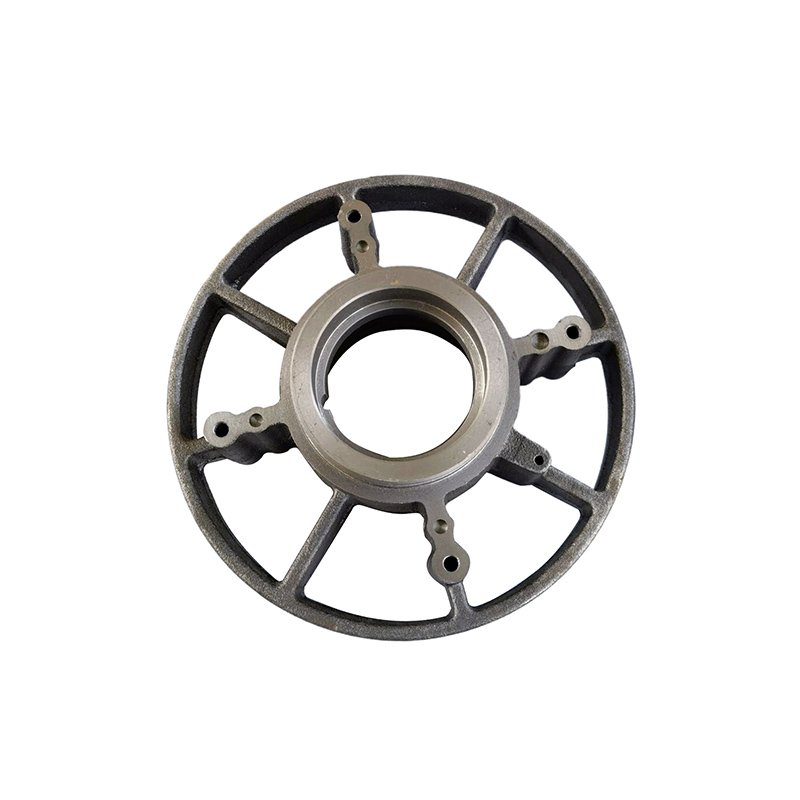

Housings and covers: thermostat housings, timing covers, differential covers, water pump housings. These need flat sealing faces and often a machined groove for a gasket or an O-ring.

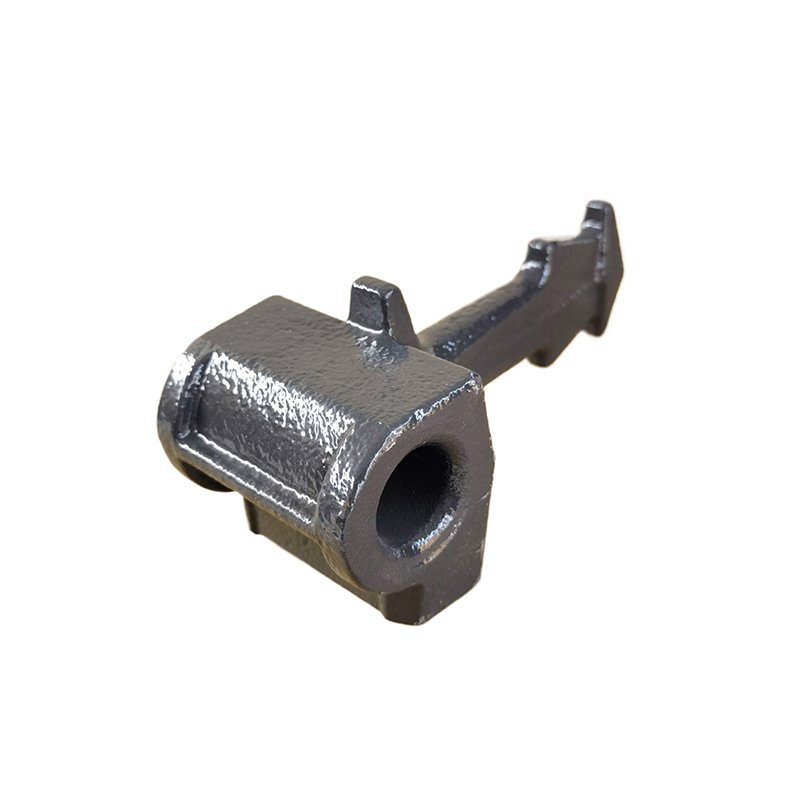

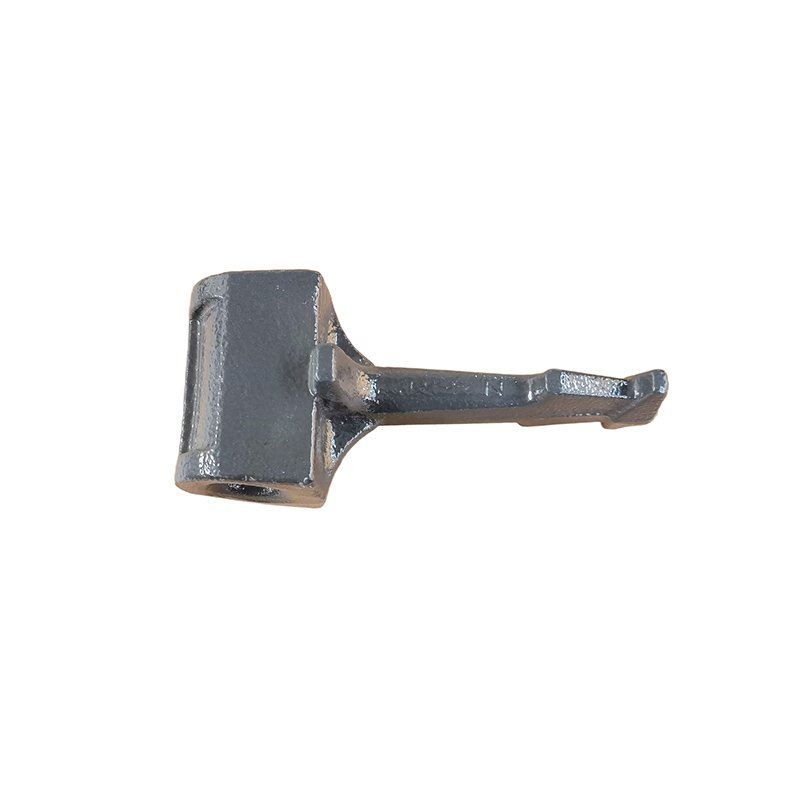

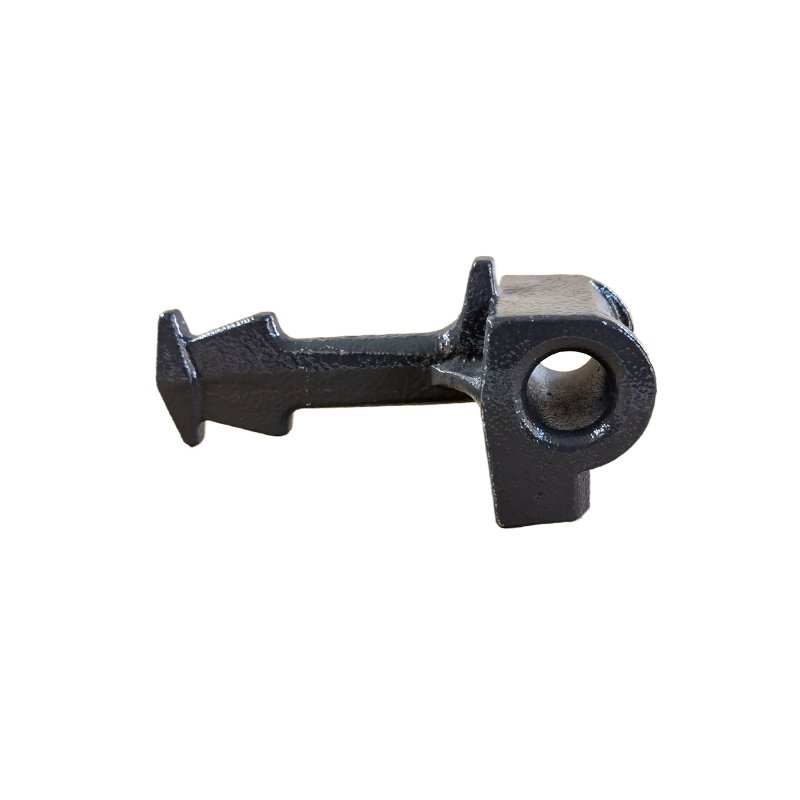

Pedal and lever parts: clutch forks, pedal arms, shift levers. These are wear parts as much as structural ones, and the pivot bore is the critical feature.

Weights and counterweights: crankshaft counterweights, ballast, vibration damper bodies. These are bought on mass and density, and the tolerance is on the weight.

Material Choice for a Replacement Part

The original may have been grey iron, ductile iron, malleable iron or steel. Replacing one with another changes the behaviour.

Grey iron to ductile iron is usually an upgrade, and it is safe if the part is not a wear surface. Ductile to grey is a downgrade and should not be done on a loaded part.

Malleable iron is now rare. It is usually replaced by ductile iron, which has similar properties and is easier to source. If a customer's specification names malleable, we will quote ductile as an alternative and state the equivalence.

Steel to iron is a bigger change and usually needs a redesign, because the section that was adequate in steel may not be in iron.

Small Batches and the Tooling Question

Aftermarket batches are often 100 to 1,000 pieces for a part that may sell slowly. The tooling cost per piece can be the largest line in the quote.

Three ways to bring it down. Use a family pattern where several similar parts share a body. Use a wooden or resin pattern for a very small batch, accepting a shorter pattern life. And quote the tooling separately so the customer can see the payback point and decide the batch size.

What we will not do is hide the tooling in the piece price. It makes the part look expensive and the decision opaque.

Matching Finish and Appearance

An aftermarket part is often visible, and a casting that looks different from the original is a complaint even when it works.

Paint to a colour match is straightforward. A cast surface texture that differs from a machined original is harder: a bracket that was machined all over will show a cast surface where the original was bright.

Where appearance matters, we can machine the visible faces, which costs an operation. Where it does not, as-cast with paint is usually acceptable and much cheaper.

Cast-in markings are the one place where an aftermarket part should differ: put your own part number on it, not the OEM's.

Documentation for a Distributor

A distributor needs three things: a drawing that can be filed, a material certificate that can be shown to a customer, and a batch record that allows a trace.

We supply all three, and we keep the drawing on file so a repeat order is a purchase order rather than a new project.

For a distributor selling into a market with a conformity requirement, we will also state what the part is and is not certified to. Claiming an OEM equivalence without the test data is not something we will do.

Cost Structure: Where the Money Goes

On a 2 kg cast bracket, the iron is rarely more than 15 percent of the price. The rest is moulding, fettling, machining, coating, inspection and the tooling amortisation.

That breakdown explains why some changes save money and others do not. Halving the part's weight does not halve the price; it may save 7 percent. Removing one machined face can save 10 percent, because it removes a setup. Switching from ductile to grey iron saves on material and machining, and it may cost on scrap if the part needed the ductility.

The tooling line is the one buyers focus on and the one that matters least per piece at volume. A 900 dollar pattern over 3,000 pieces is 30 cents a part. Over 300 pieces it is 3 dollars, and that is the number that makes a small order look expensive.

Export Packing and Marking

Aftermarket parts travel in mixed containers and sit in distributors' warehouses for a year. The packing has to survive both.

Wooden crates for heavy parts, cartons for light ones, with a vapour barrier where humidity is a risk. Castings are dry and shot blasted before packing; a part packed damp arrives with rust bloom that a distributor will reject even though it is cosmetic.

Marking follows the customer's label standard: part number, description, quantity, batch. We put the batch number on the carton and on the casting, so a warranty claim can be traced to a heat without opening every box in the warehouse.

For private label, we print the customer's labels rather than ours. What we will not do is print another manufacturer's brand on a part.

Lead Times and the Part You Forgot to Order

Aftermarket demand is unpredictable, and the parts that run out are never the ones in the forecast.

For an existing pattern with no change, we can pour within two to three weeks and ship a small batch without a full container. That is the arrangement most distributors actually need: not a low price, but the ability to order 200 pieces when a model unexpectedly becomes popular.

Where a distributor carries a range of 40 part numbers, the practical structure is a blanket order with a call-off, and a minimum stock held at our end for the fastest movers. It costs a little more per piece and it removes the stock-out that costs a customer.

What we cannot do is hold a pattern indefinitely for a part that sells twice a year and then produce it in a week. Pattern storage is free; capacity is not.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you make a part from a broken sample?

Yes, if the break does not run through a critical dimension. We reconstruct the geometry, send a drawing for approval, and cast from that.

What is the minimum batch for an aftermarket part?

Around 100 pieces for a small part with an existing pattern family, 300 for a new pattern.

Can you match the original material exactly?

Usually. If the original was malleable iron or a specific grade, we will match it or propose an equivalent with the properties stated.

Do you supply parts painted in the original colour?

Yes, to a sample or a colour reference, with a chip approved before the batch.

Can the part carry our brand instead of the OEM's?

Yes, cast into a non-critical face. We will not cast an OEM's trademark onto a part we make for someone else.

What is the lead time for a reverse-engineered part?

Six to eight weeks including measuring, drawing approval, pattern and a sample.
