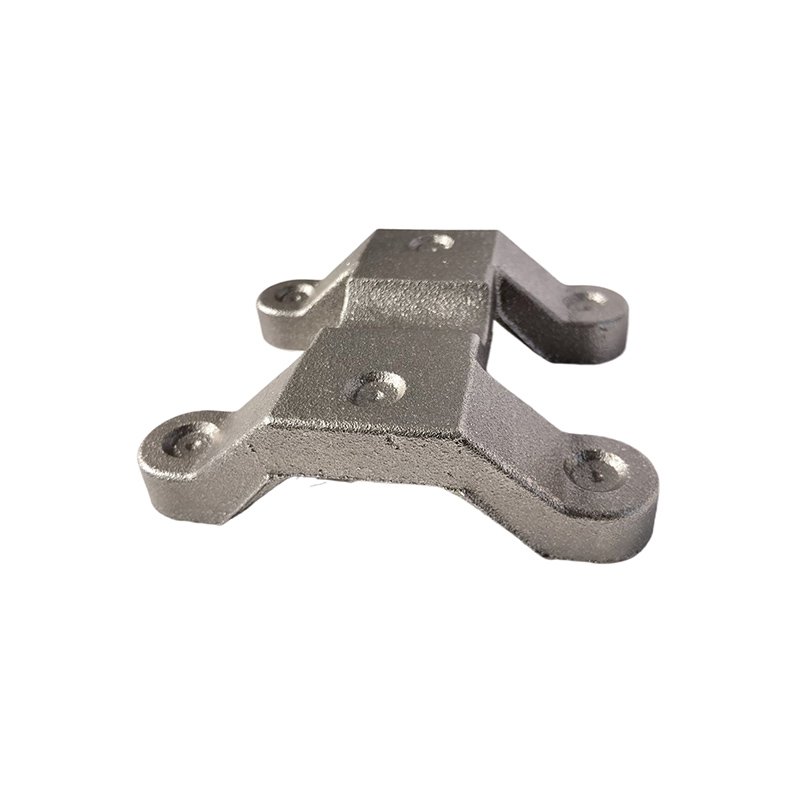

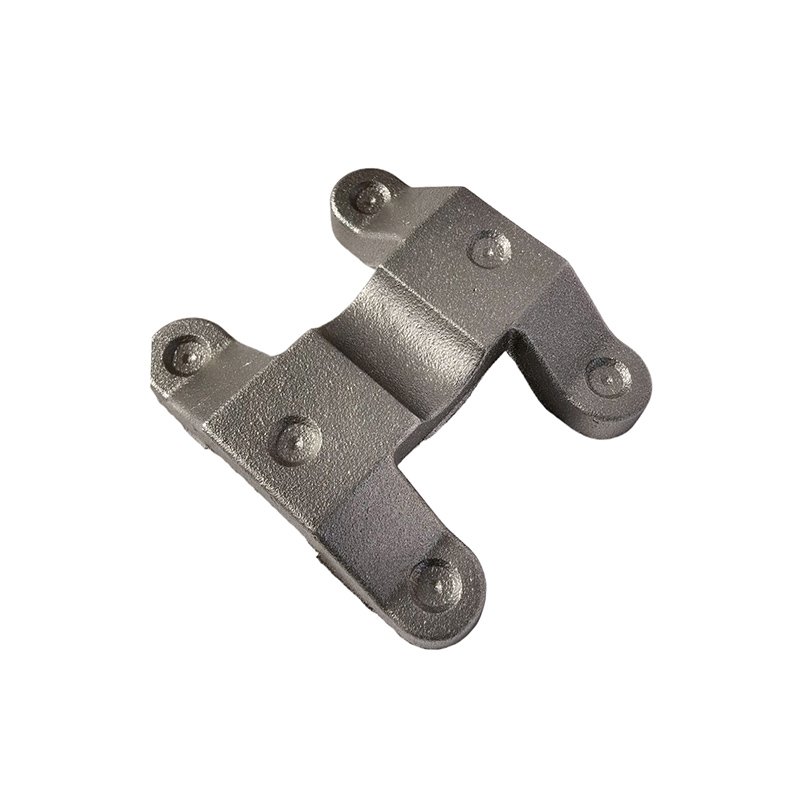

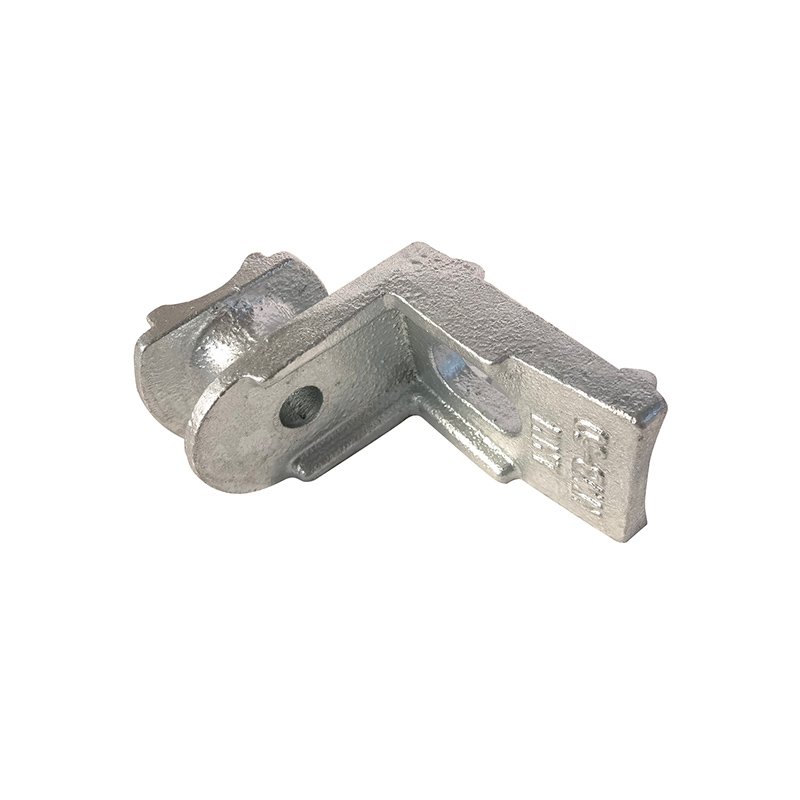

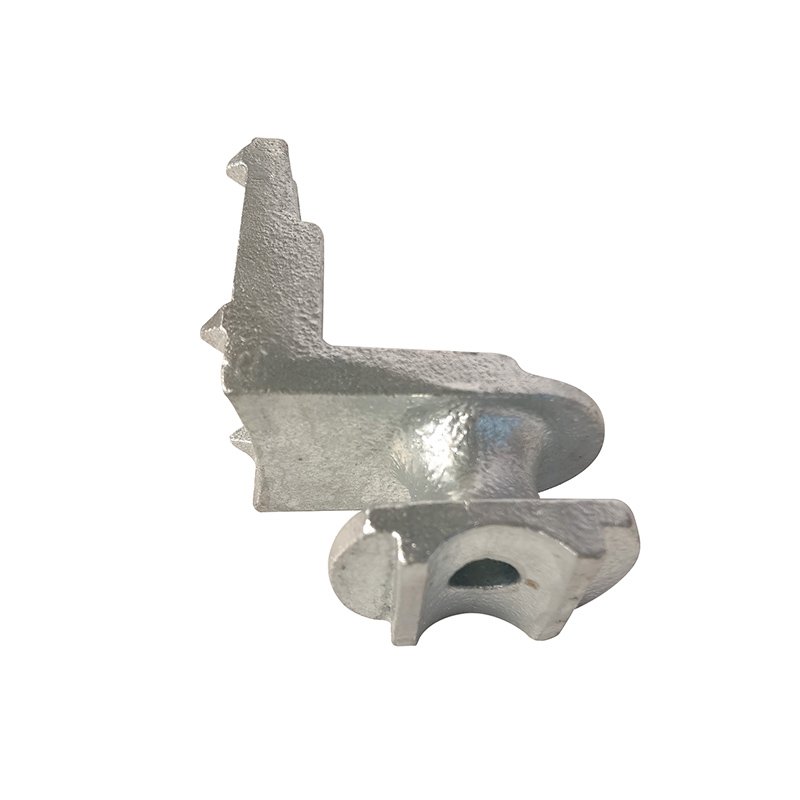

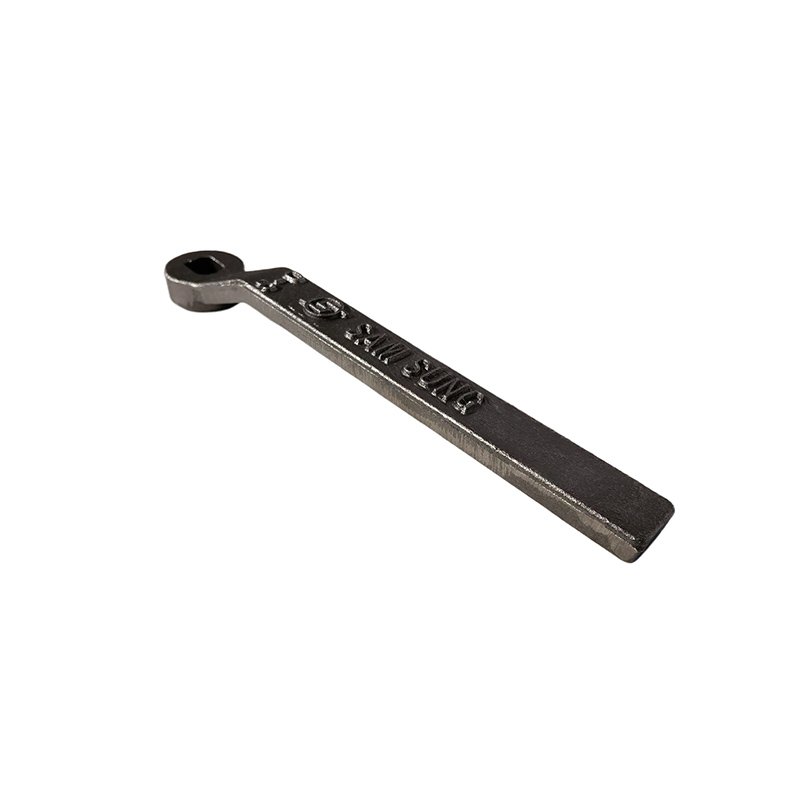

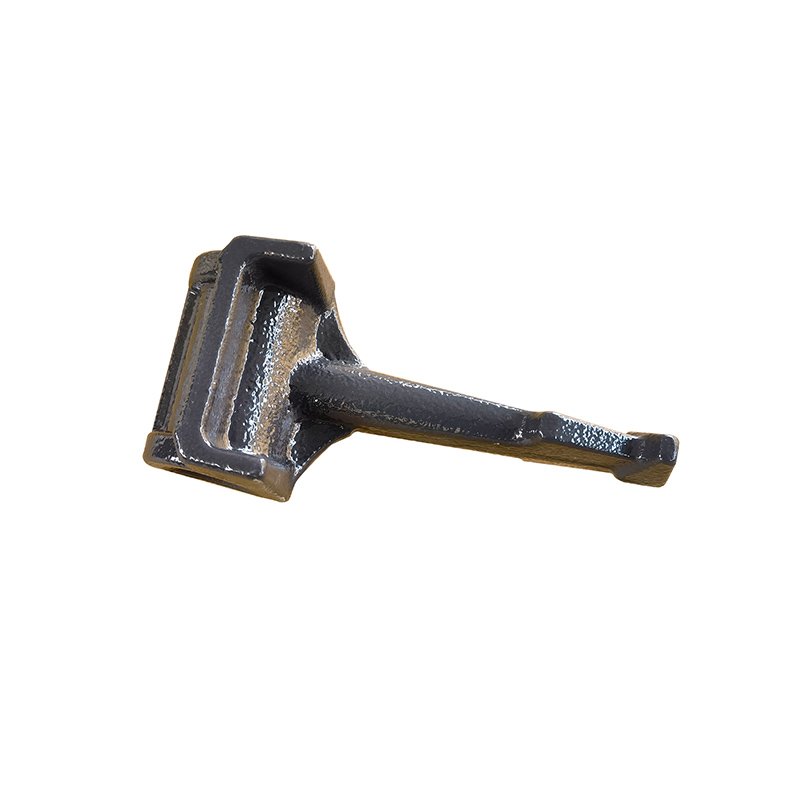

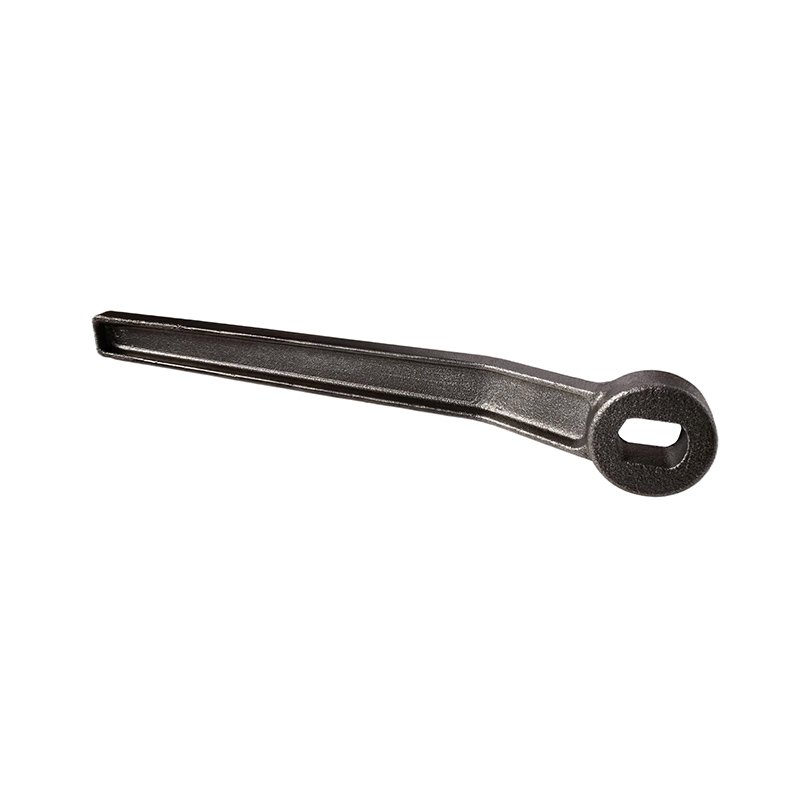

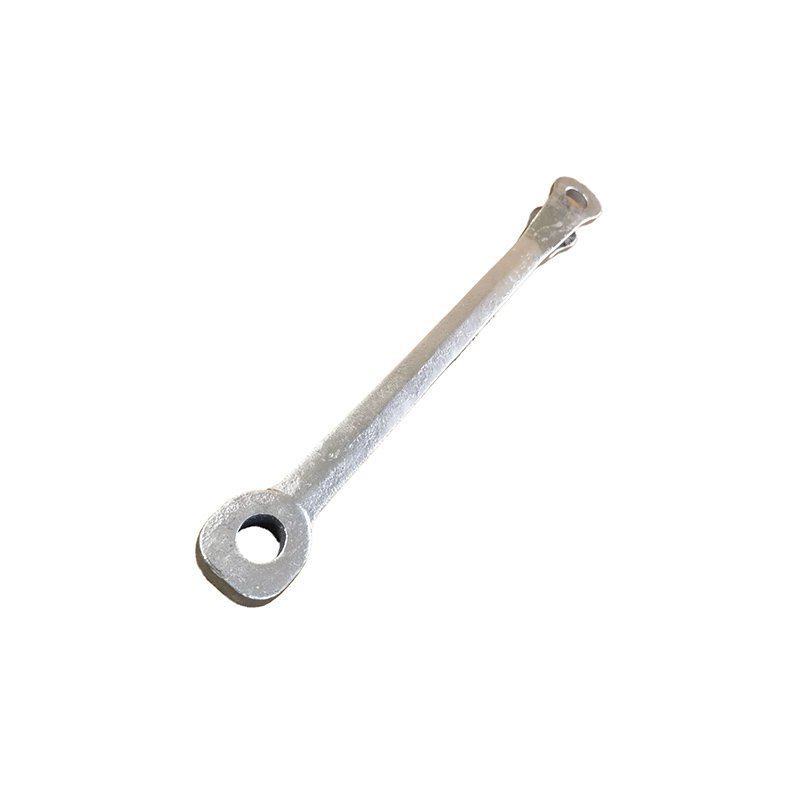

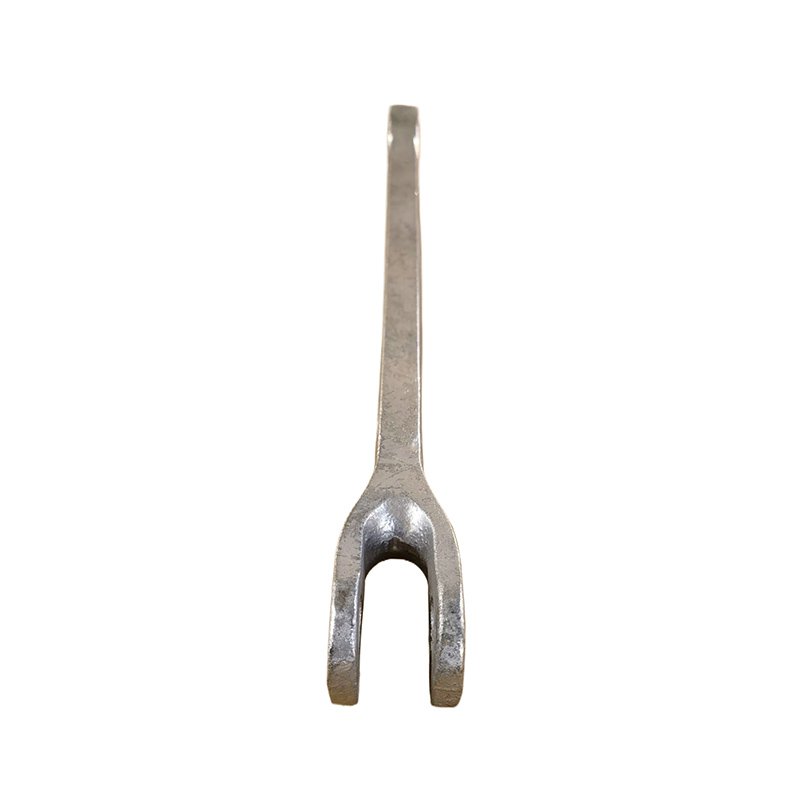

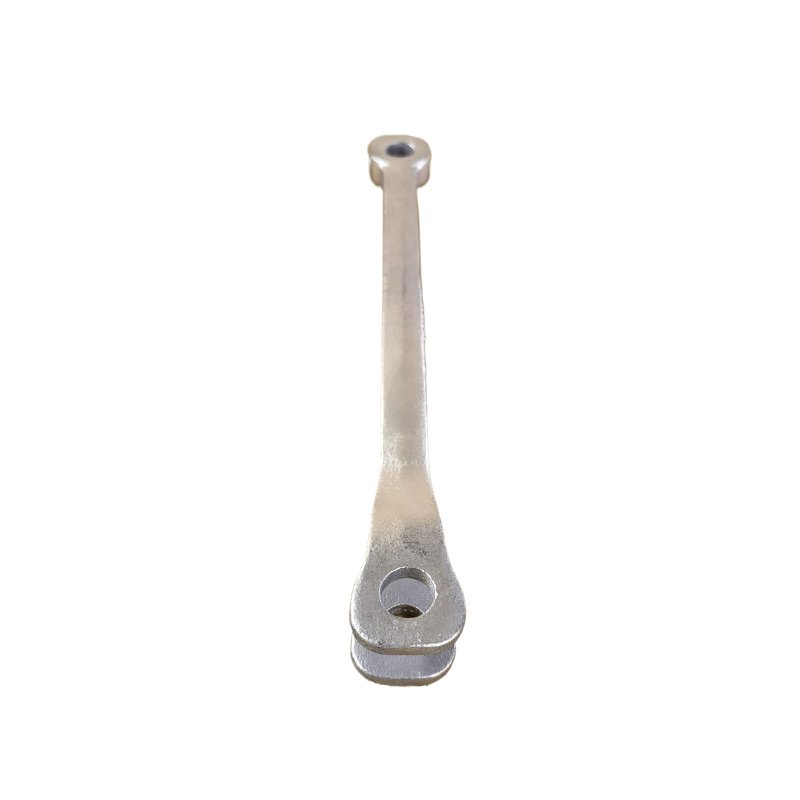

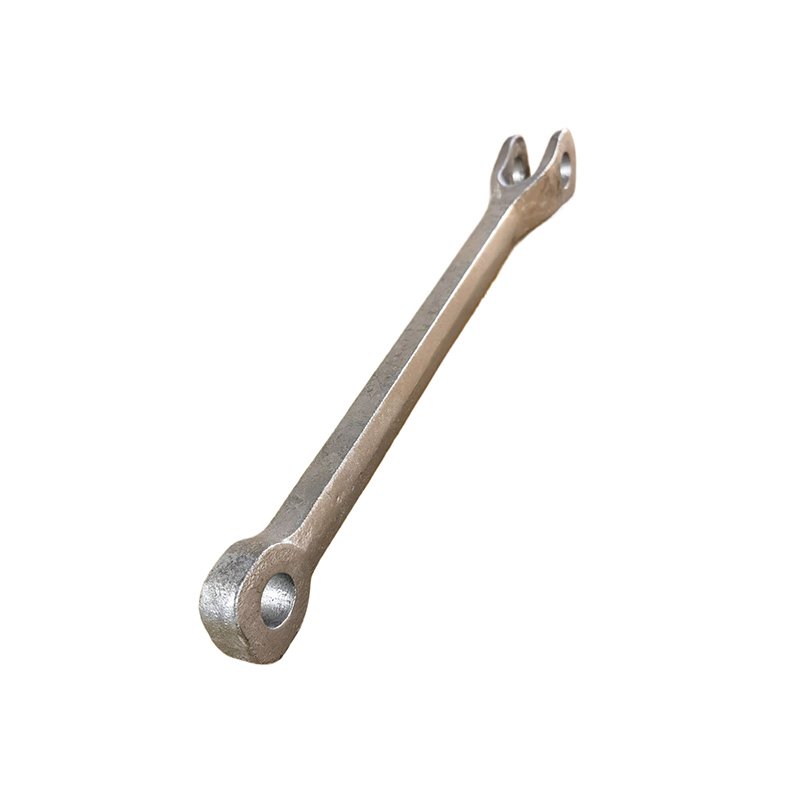

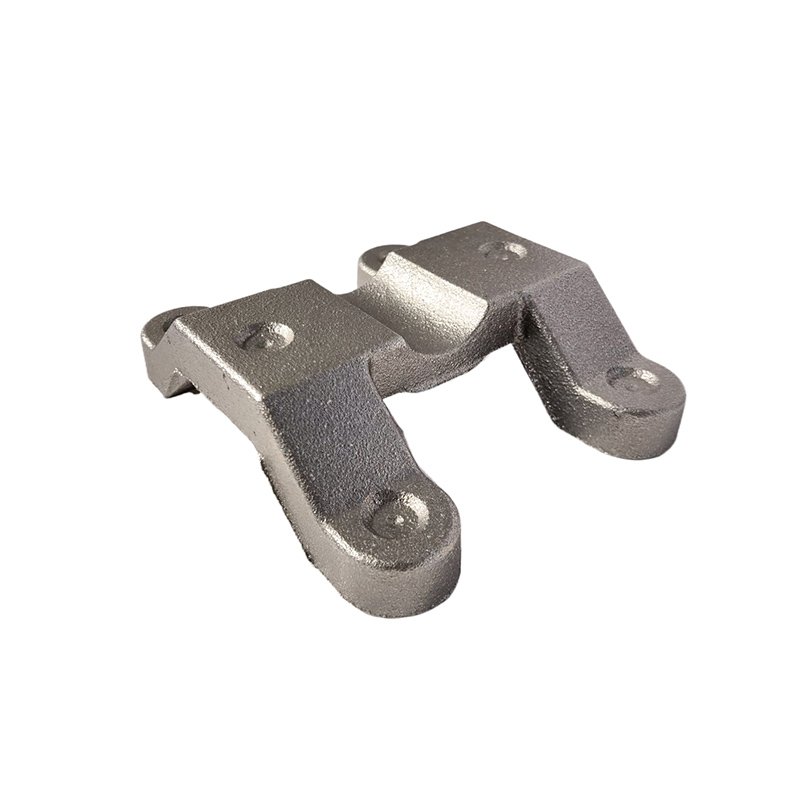

Engine Mount and Suspension Brackets Cast in Ductile Iron

Product Details

An engine mount bracket does not absorb vibration. The rubber bush does that. The bracket's job is to hold the bush in exactly the right place, in exactly the right orientation, for two hundred thousand kilometres, while the engine moves under it.

A Mount Bracket Transfers Vibration, It Does Not Absorb It

This distinction matters because it changes what the bracket is optimized for. A bracket designed to absorb vibration would be flexible; a mount bracket has to be stiff in the directions that locate the powertrain and compliant in none of them.

Its stiffness sets the powertrain's rigid-body modes: bounce, pitch and roll. Those modes have to sit away from the engine's firing frequency at idle, or the whole vehicle shakes at a standstill.

So the bracket is a spring in a tuned system, and its stiffness is a design number, not a by-product of its shape.

The Bush Interface: Where Most Brackets Crack

The rubber bush is pressed into a bore in the bracket, and that bore is the highest-stress region in the part. The bush transfers the engine load into the bracket through a thin ring of material, and every engine cycle loads it.

Three failure modes, all at that interface. A crack starting at the bore edge if the edge is sharp. A crack through the bracket if the wall around the bore is too thin. And a bore that deforms under load so the bush walks out.

The fixes are geometric: a chamfer or radius at the bore edge, a wall thickness of at least one bush diameter around the bore, and a rib that carries the load from the bore into the bracket's mounting face.

Fatigue Loads From Road Input

The engine's own vibration is high-frequency and low-amplitude. Road input is the opposite: low-frequency, high-amplitude, and unpredictable.

A bracket sees both. The engine cycles are millions and small; the road events are thousands and large. Together they produce a variable-amplitude load history, and the damage accumulates according to the larger cycles.

That is why a bracket is designed for fatigue rather than for static strength, and why ductile iron is used rather than grey. Ductile iron at 450 MPa with 15 percent elongation has a fatigue limit that grey iron does not, and it deforms rather than fractures at an overload.

Stiffness, Resonance and the Mount's Real Job

The powertrain's bounce mode is typically in the range of 8 to 15 Hz, and the engine's idle firing frequency for a four-cylinder at 750 rpm is 25 Hz. The bracket stiffness is chosen so the bounce mode stays below the firing frequency with a margin.

That is a system calculation, and the bracket is one term in it. What the foundry needs to know is the target stiffness, because it changes the section: a 10 mm wall and a 6 mm wall with a rib can have the same stiffness and different weights.

Where a customer does not have the number, we can calculate the stiffness of a proposed geometry, which is often faster than casting a sample and measuring it.

Bolt Bosses and Assembly Line Torque

Mount brackets are installed on a line with a torque-controlled tool, and the boss has to survive that every time.

The failure mode is crush or thread stripping. A boss with 1.5 times the nominal diameter in thread engagement and a wall of at least one bolt diameter around it will survive a production line; a thinner one will fail on the first shift and then intermittently for a month.

The boss also has to be fed during casting. A boss on a thin wall is a hot spot, and a hot spot in a bolt boss is a porous thread that pulls out under load.

Weight: Lightening Without Changing the Frequency

Powertrain brackets are a favourite target for weight reduction, and the constraint is that the stiffness has to stay the same.

Three moves that work. Move material away from the neutral axis into flanges and ribs. Replace a solid section with a cored one, keeping the outer dimensions. And shorten the load path by moving the mounting face closer to the bush bore.

What does not work is thinning uniformly. A bracket with 20 percent less wall everywhere has 20 percent less stiffness, and the powertrain mode moves with it.

The casting limit is 4 to 5 mm on ductile iron, which is usually reached before the weight target is.

Validation: Rig Test, Vehicle Test, and the Gap

A bracket is validated on a rig first, with a load history derived from vehicle measurements, and then on a vehicle, on a proving ground.

The rig test is accelerated and repeatable; the vehicle test finds the loads the rig did not include. Most bracket failures that escape both are caused by an installation error or a variation in the rubber bush, not by the casting.

We supply the material certification and the dimensional report, and we can supply first-article parts for the rig. The rig itself, and the load history, belong to the customer.

Failure Analysis: What We Learn From Returned Parts

When a bracket comes back broken, the first question is where the crack started.

A crack at the bore edge points to a sharp corner or a bush that was pressed in badly. A crack across a rib points to a section that was too thin or a load path that was not followed. A crack at a bolt boss points to a porous boss or an over-torqued bolt.

We section returned parts and look at the fracture surface and the microstructure. It costs little and it usually ends the argument about whether the casting or the design was at fault.

Reading a Mount's Test Data

A mount bracket is usually delivered with a stiffness figure and a fatigue result, and both are easy to misread.

Stiffness is normally quoted in three directions, and only one of them is the one you designed for. A bracket that is stiff in vertical compression may be soft in fore-aft shear, and the fore-aft mode is often the one that causes a boom at low speed.

Fatigue results are quoted as a number of cycles at a load amplitude, from a rig that applied a simplified load history. Real road input is a spectrum, and the damage it does depends on how the spectrum is distributed, not on the peak. A bracket that passes 500,000 cycles at one amplitude can still fail in service if the real history has more large cycles than the rig assumed.

The useful question is not "did it pass" but "what history did it pass against, and how does that compare with the vehicle".

When the Bracket Is Blamed for a Bush Problem

A vibration complaint on a new vehicle programme usually starts with the bracket, because it is the part that can be changed quickly. Often the cause is the bush.

A rubber bush's stiffness changes with temperature and age. A bush that is correct at 20 degrees can be 30 percent stiffer at minus 10, which moves the powertrain mode and produces a boom that only appears in winter. No bracket redesign fixes that.

The other common cause is installation: a bush pressed in at an angle, or a bolt tightened before the powertrain settled, leaves the bush preloaded in shear. The bracket then carries a static load it was not designed for, and it fails at the bore.

Before changing the casting, measure the bush in place and check the installation procedure. It is cheaper than a new pattern.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What grade do you use for engine mount brackets?

EN-GJS-450-10 or 500-7, chosen for fatigue and elongation rather than peak strength.

Can you match an existing bracket that is failing?

Yes, and we will start with the fracture. Send the broken part and the load data, and the redesign usually follows from where it cracked.

How thin can the wall be around the bush bore?

At least one bush diameter. Thinner and the bore deforms under load, which lets the bush walk.

Do you press the bushes in?

No. We machine the bore to the bush supplier's specification and supply the bare casting.

Can you calculate the bracket stiffness?

Yes, for a proposed geometry, before a pattern is cut. It is faster than casting and measuring.

What is the lead time for a suspension bracket?

Four to six weeks including a machined first article, longer if a rig test has to run before approval.
