Moulding: Shell mould for dropouts and brake mounts, clay sand for the larger brackets.
Material: Ductile iron EN-GJS-500-7 for dropouts and motor mounts, cast steel for the stressed joints.
Weight range: 0.05-2 kg per piece.
Tolerance: ISO 8062-3 CT 8, with axle slots and disc mounts machined to position tolerance.
Testing: Bend and proof load on sample lots; chemistry and metallography per heat.
Machining: Axle slots, disc mount faces and kickstand threads cut after casting.
Finishing: Powder coating, e-coat, or zinc plating on the hardware that sees road spray.
Lead time: 25-30 days on repeat work.
Category: Lost Foam Casting

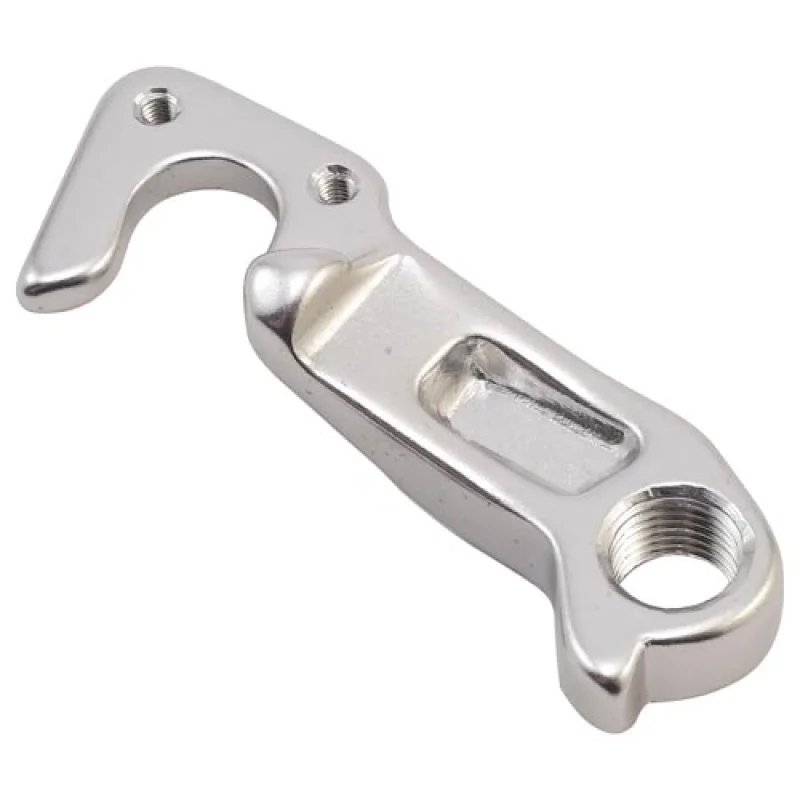

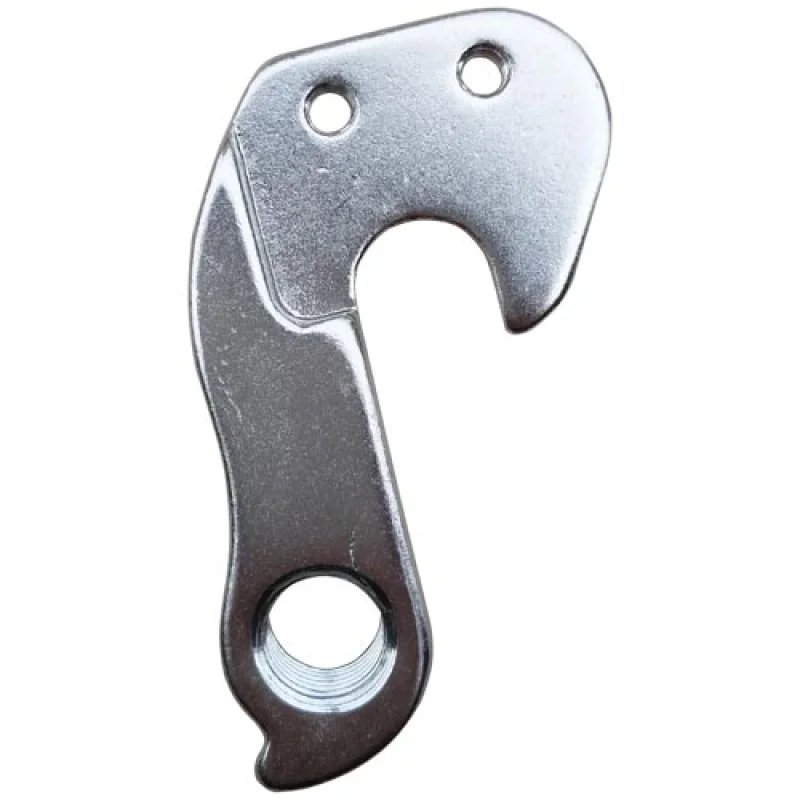

Most bicycle frames are aluminum or carbon, but the casting story in the bike industry is real and it is ferrous where it counts: dropout assemblies, brake mounts, motor mounting parts on e-bikes, kickstand hardware, cargo bike load points and trailer couplings. These are small, load-bearing castings — parts where a crack is a safety event, which is exactly why ductile iron and its bend-before-break behavior is a sensible material for the duty.
We cast these components to drawing: ductile iron at spheroidization above 90%, machined where bearings, axles or brake hardware seat, and finished for the corrosion environment the bike will actually live in — dry urban use and coastal riding want different coatings.

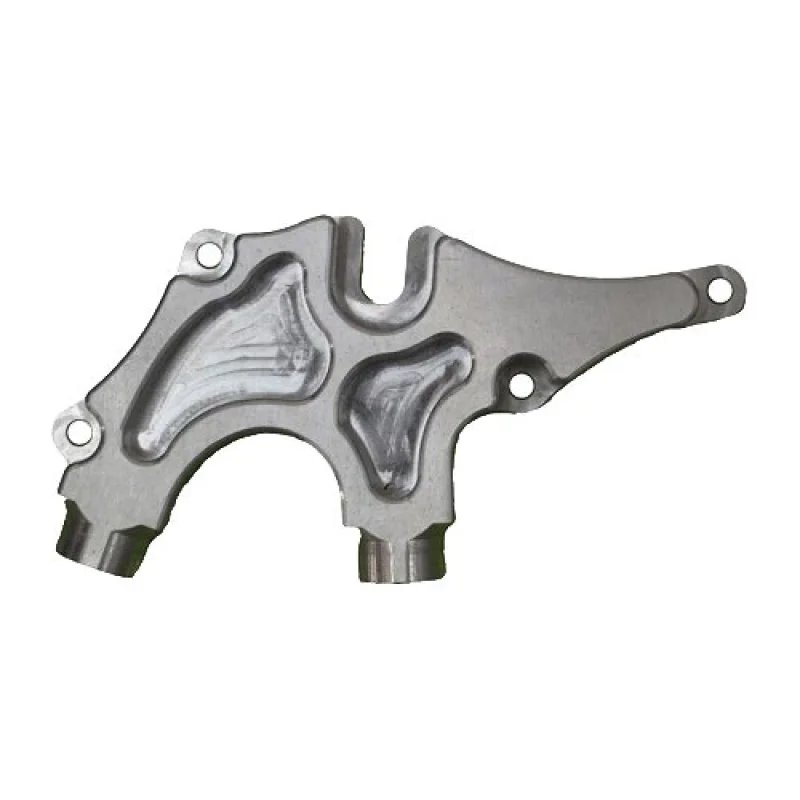

The e-bike segment quietly multiplied the load on several small components. A mid-drive motor mount carries drive torque, rider weight and road shock together, thousands of cycles. Cargo bikes put pallet-class loads through dropout and rack interface castings. Under those duties thin aluminum extrusions get bulky, and small ductile iron castings carry the load in a compact envelope — which is why we see e-bike and cargo bike builders reviewing ferrous castings for the structural nodes of the frame rather than the tubes.
There is a weight penalty, and it is worth being straight about it. A ductile iron dropout is heavier than a forged aluminum one. Whether that matters depends on the product: a cargo e-bike already carrying 150 kg of payload does not notice 300 grams, while a road bike chasing grams should stay with aluminum. We will tell you where the trade stops making sense.
The strongest argument for a casting in a bike frame is joint consolidation. A dropout that would be fabricated from three pieces and two welds becomes one casting with the axle slot, the disc mount and the rack eye in one part. Fewer welds means fewer heat-affected zones, fewer alignment operations, and one part number instead of three. On e-bike motor interfaces the same logic applies with more force, because the mount also carries the motor's reaction torque and needs stiffness that a welded plate assembly struggles to hold.
What the casting needs from your design: enough section around the axle slot to resist fatigue, a machined face where the disc caliper mounts, and a wall thickness that feeds properly during solidification. Send the full assembly rather than the bare part — where the load enters the casting decides how it should be shaped.
Bike components are fatigue-loaded, not statically loaded, so a static strength number tells you very little. A dropout that survives 2,000 N once may still fail at 800 N after 200,000 cycles. If your product carries a safety claim, plan for fatigue testing on the finished component, beyond material certificates on the casting. We can supply castings for your test program and adjust section or grade based on results; what we cannot do is certify a fatigue life we have not tested.
For prototypes, that means casting a small batch early enough to test before committing to production tooling. Printed or loose patterns make this affordable, and the design changes that come out of a fatigue failure are much cheaper at that stage.
Bike parts are visible, so finish matters for the brand as well as for corrosion. Powder coating is the standard, with galvanizing underneath for coastal and winter-salt markets. Threaded interfaces — bottle bosses, rack mounts, brake mounts — are masked or chased after coating so bolts run in by hand. Bearing seats and axle faces are machined after coating where the coating thickness would otherwise change the fit.
That sequencing is worth specifying once: coat, then machine the fits, then chase the threads. Done in the other order, every bearing press becomes a scraping job at assembly.
Bike programs change geometry constantly, especially in the first two years of a new platform. Committing to production tooling while the dropout is still being revised is how small brands end up with a pattern that no longer matches the frame. The practical route is a printed or loose pattern for the first few iterations — a few dozen castings per revision, enough to build and ride and break — and production tooling only once the geometry stops changing.
What that costs you: slightly higher per-piece price during the prototype phase, because loose patterns are slower to mold. What it saves: a tooling change, which typically costs more than a year of prototype pieces. Most of our bike customers run two or three prototype rounds before the pattern is cut, and the ones who skip that step usually come back for it.
Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.
Our production is ferrous — grey and ductile iron and cast steel. For ferrous structural components (dropouts, motor mounts, couplings, load hardware) we are a direct source; for aluminum frame parts we are not the right supplier.
Powder coating as standard, with galvanizing under the coating for coastal and winter-salt markets. Tell us the destination climate and we match the system.
Send the sample or drawing. We reproduce the profile, axle interface and disc mount positions, quote tooling and unit price, and provide first articles with a dimensional report.
Bike-sector casting programs run economically from a few thousand pieces per year per component. Smaller pilot quantities can run on printed or loose patterns while your model is still evolving.
Material density is roughly three times aluminum's, but the part is usually smaller in section because iron is stiffer. Expect a net weight increase in the tens to low hundreds of grams per frame, not kilograms.
They can be supplied shot blasted and clean for your coating line. For iron parts, a primer before topcoat is standard practice — bare iron under powder will show rust at any pinhole.

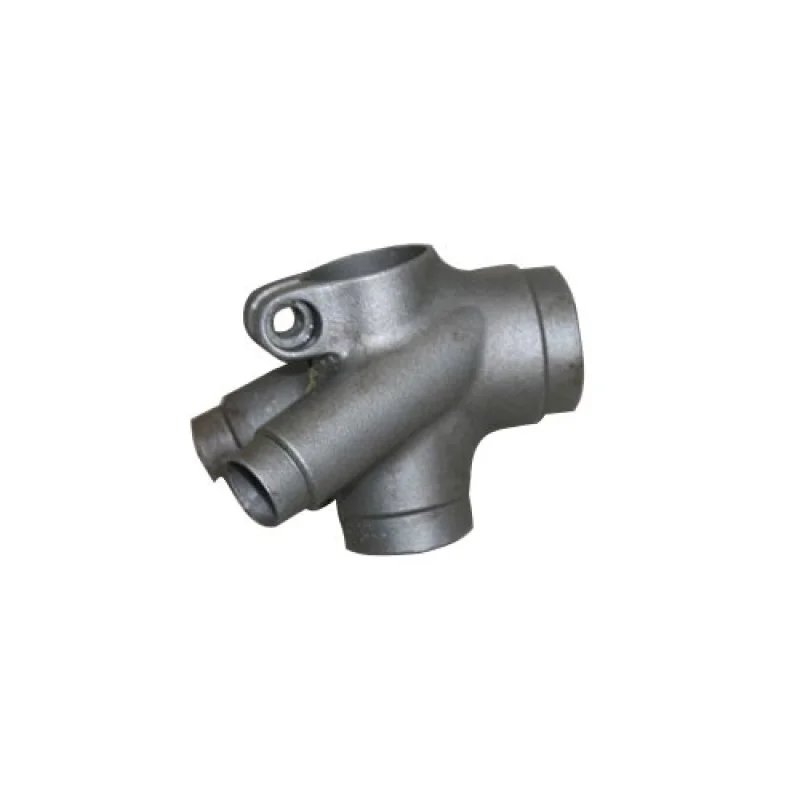

| Name | Bicycle Casting Parts |
| Manufacturing Methods | Manufacturing according to drawings |
| Materials | QT (Ductile Iron) / HT (Grey Cast Iron) / Cast Steel (ZG25) / Customized |
| Process | Customized |
| Surface Treatment | Powder coating / Customized |
| Test Content & Data | 1. Chemical composition; 2. Mechanical properties; 3. Metallographic inspection; 4. Inspection of appearance, size, shape and position tolerance; 5. Surface roughness |
| Packaging | Wooden case / carton / bulk / individually packaged / customized |
| Service | Freight consulting / quality inspection / after-sales / other value-added services |
| Delivery Method | Sea / air / land |
| Quality Assurance | Lifetime |
![]()
