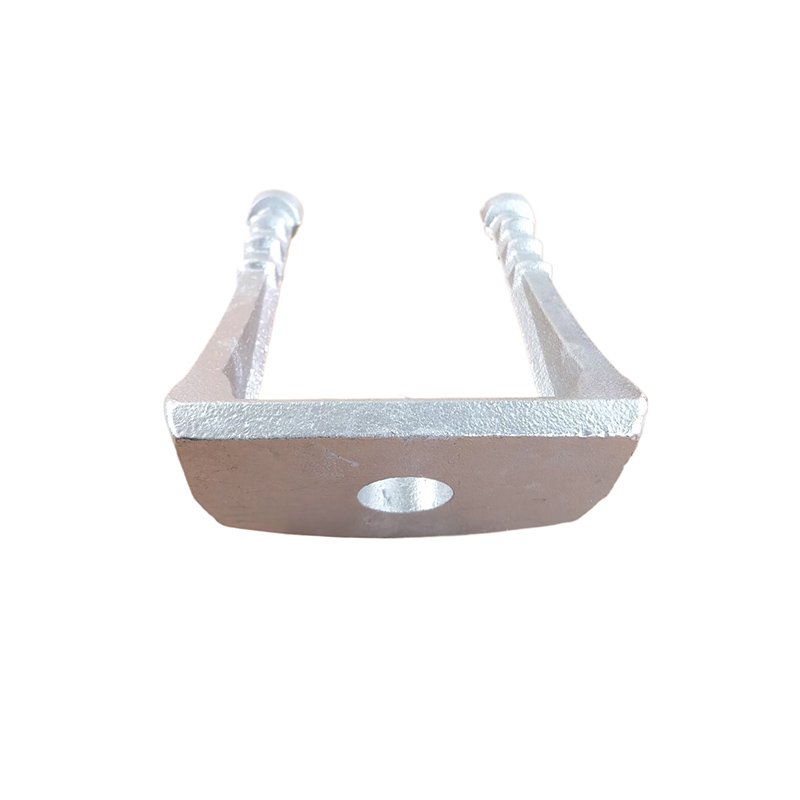

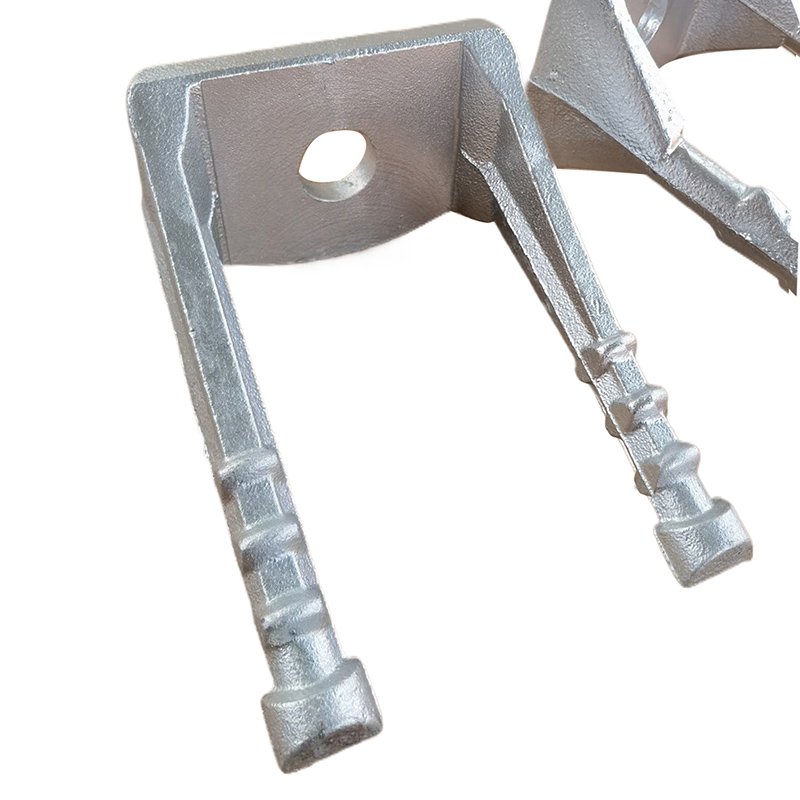

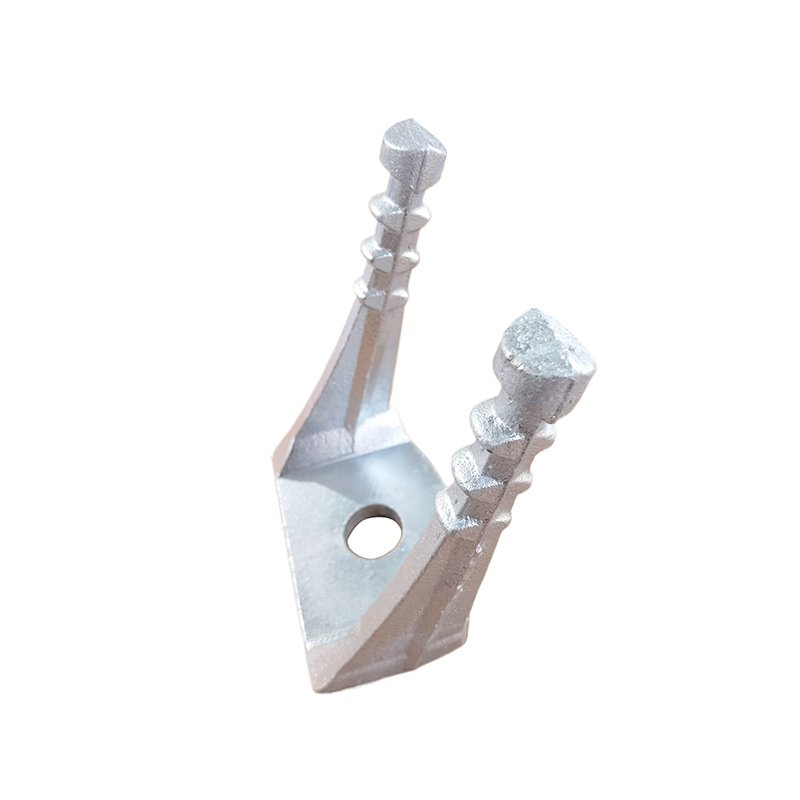

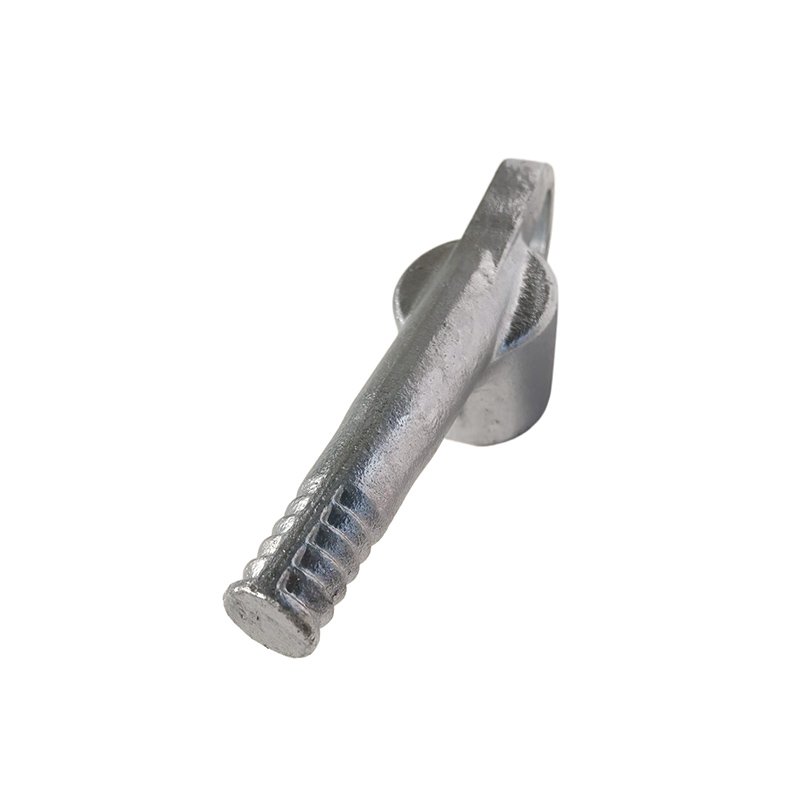

Ductile Iron Beam Clamps for Steel and Concrete Structures

A beam clamp holds a load by friction and geometry, and it does so on a beam whose dimensions the clamp's designer never saw. That is the whole problem in one sentence: the clamp has to grip a range of flange thicknesses, hold under vibration, and not damage the beam it hangs from.

A Clamp Is a Friction Joint With a Safety Problem

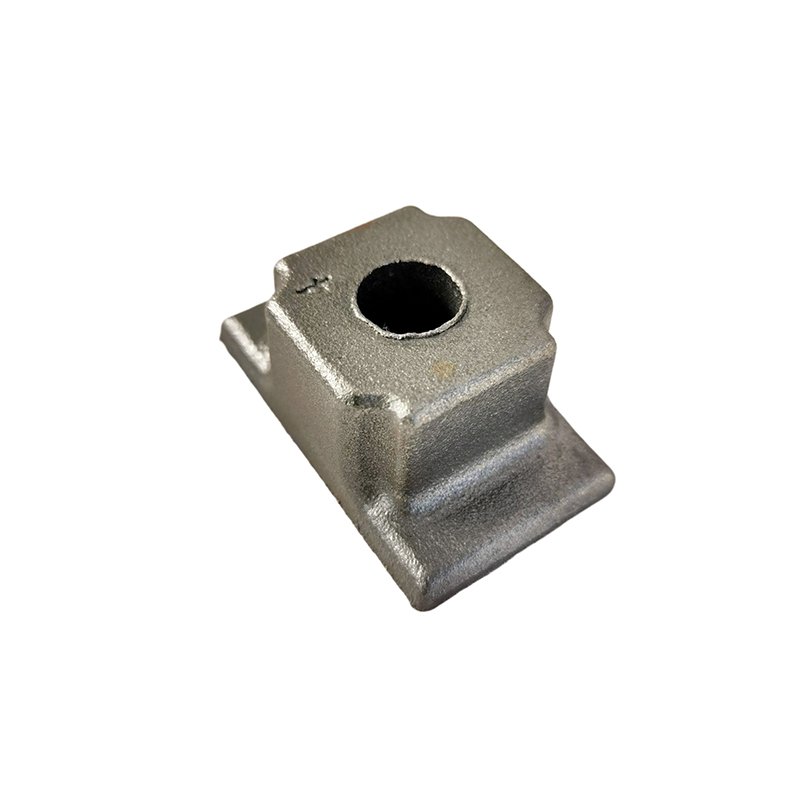

The clamp works because a bolt pulls two jaws onto the beam flange, and the friction between jaw and steel carries the load. Everything else, the shape, the material, the coating, exists to keep that friction stable.

The safety problem is that a friction joint fails without warning. A bolted bracket that is overloaded bends; a clamp that is under-torqued slides, and once it starts to slide, it walks off the flange.

That is why clamp design is conservative on grip and explicit about torque. The bolt torque is not a suggestion, it is the load path.

Flange Thickness and the Grip That Follows

Steel beam flanges vary: a 200 mm universal beam has a flange around 10 mm, a 300 mm one around 15 mm, and a heavy section can be 25 mm or more. A clamp designed for 10 mm will not grip a 25 mm flange, and one designed for 25 mm will bottom out on a 10 mm flange and apply no grip at all.

The usual solution is a clamp with a take-up range, typically 5 to 20 mm, and a jaw that is shaped to contact the flange edge rather than the face. Edge contact is more tolerant of thickness variation and gives a more predictable grip.

Where a customer has a fixed flange thickness, a dedicated clamp is better: it seats fully, the torque translates directly into grip, and there is no range to be at the wrong end of.

Bolt Torque: the Number Nobody Applies Correctly

A clamp's rated load assumes a torque that is rarely achieved on site. A fitter with a spanner on a ladder applies somewhere between half and double the specified torque, and the clamp's capacity varies with the square of the bolt load.

Two design responses. Specify a bolt with a known torque-tension relationship and mark the torque on the casting itself, so the fitter cannot claim they did not know. And design the clamp so that under-torque fails safe: a jaw that seats on the flange before the bolt runs out of thread means a low torque gives reduced grip, not zero grip.

Where the load is critical, a load-indicating washer is worth more than a better casting, because it turns an invisible variable into a visible one.

Why Cast Iron and Not Steel Plate

A welded plate clamp is cheaper at low volume and has a fatigue problem at the weld. The jaw takes the load, the weld is at the highest-stress point, and the heat-affected zone is where cracks start.

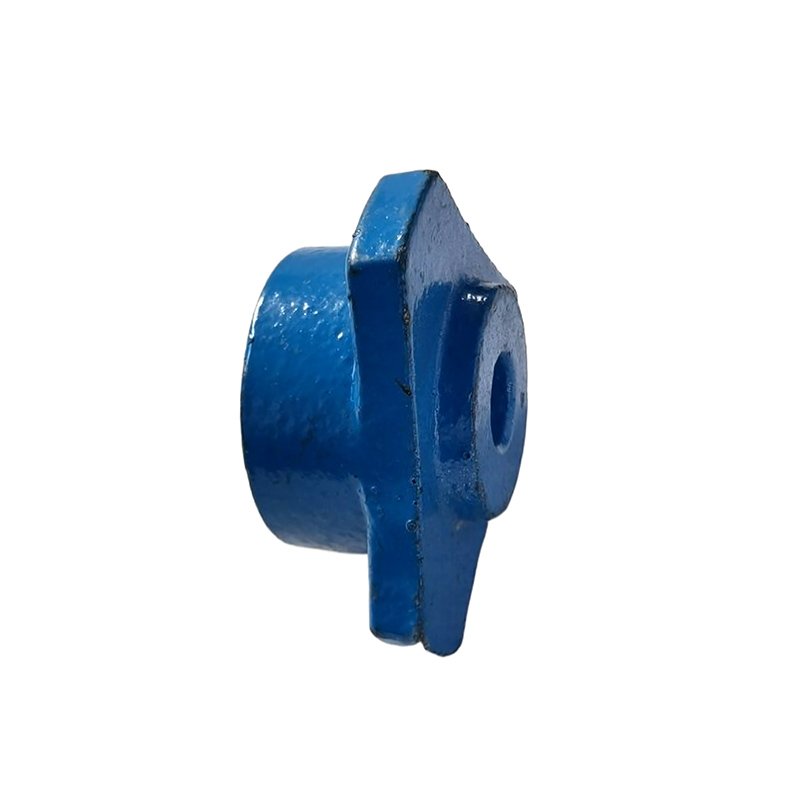

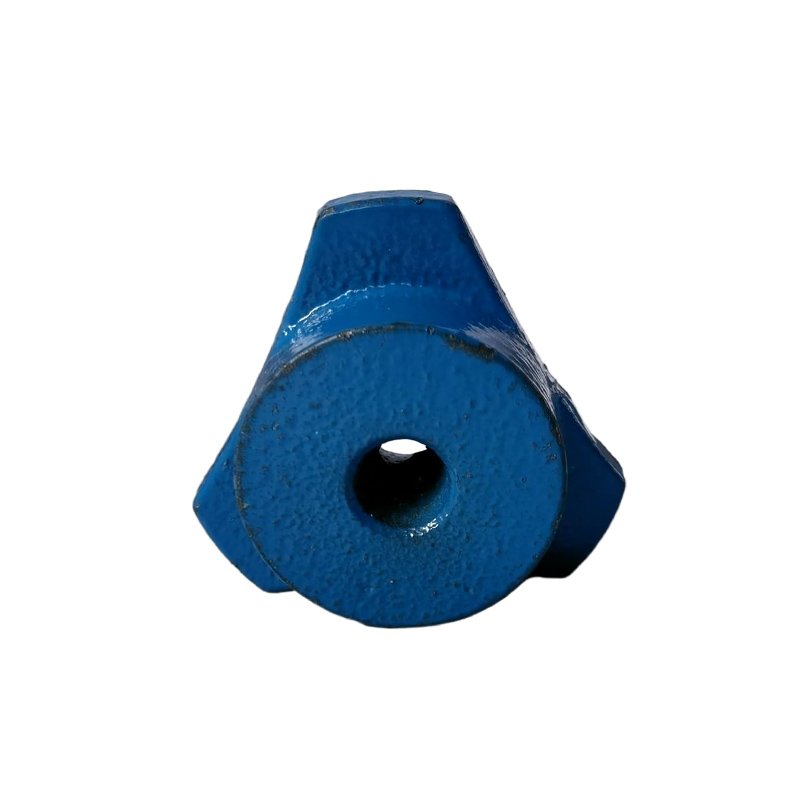

A casting puts the jaw and the body in one piece with a fillet instead of a weld. Ductile iron at 450 MPa with 15 percent elongation behaves well in this application: it deforms rather than fractures if overloaded, and it has good damping, which matters on a clamp that hangs from a vibrating beam.

Grey iron is not suitable for a load-bearing clamp. It is used for light-duty clamps on cable trays and conduit, where the load is a few kilograms, and it should not be used where a failure drops something on a person.

Load Direction: Vertical, Lateral and the Combination

Most clamps are rated for a vertical load, and most failures happen when the load is not vertical. A pipe hanger swinging under thermal movement applies a lateral load. A cable tray under wind applies a horizontal load. A clamp designed only for tension will open under a lateral pull.

The jaw geometry decides this. A jaw with a deep throat and a lip that wraps the flange edge resists lateral load; a flat jaw relies on friction alone and slides.

If your application has lateral load, say so. The clamp needs a different jaw profile, and sometimes a second bolt, and neither is a field modification.

Coating and the Friction Coefficient

Friction depends on the surfaces. Bare cast iron on bare steel gives a coefficient around 0.2 to 0.3. Painted steel gives 0.15 to 0.2. Galvanized on galvanized is similar, but a thick zinc coating can be slick and slightly lower.

That difference matters: a clamp rated for 5 kN on bare steel carries 3.5 kN on painted steel at the same torque.

So the rating has to state the surface condition it assumes. We quote clamps with a serrated jaw for painted and galvanized beams, which restores the grip at the cost of marking the coating. For beams where the coating must not be damaged, the answer is a larger clamp at lower stress, not a smoother jaw.

Testing: Proof Load and Slip

We proof load a sample from each batch to 2.5 times the rated load, and record any slip at the jaw.

What we cannot test in-house is the long-term behaviour under vibration, which is the failure mode that matters most. That test needs a shaker running for weeks, and it is normally done by the clamp designer or by a standards body.

So a clamp is bought on the basis of a design that has been validated and a batch that has been proof loaded, and the gap between those two is where the installation quality lives.

Inspection on Site and in Service

A clamp that has slipped leaves evidence: a bright wear mark on the flange, a jaw sitting at an angle, paint cracked at the bolt head. A clamp that is about to fail shows a crack at the jaw fillet, which is why a visual inspection after the first year is worth more than any document.

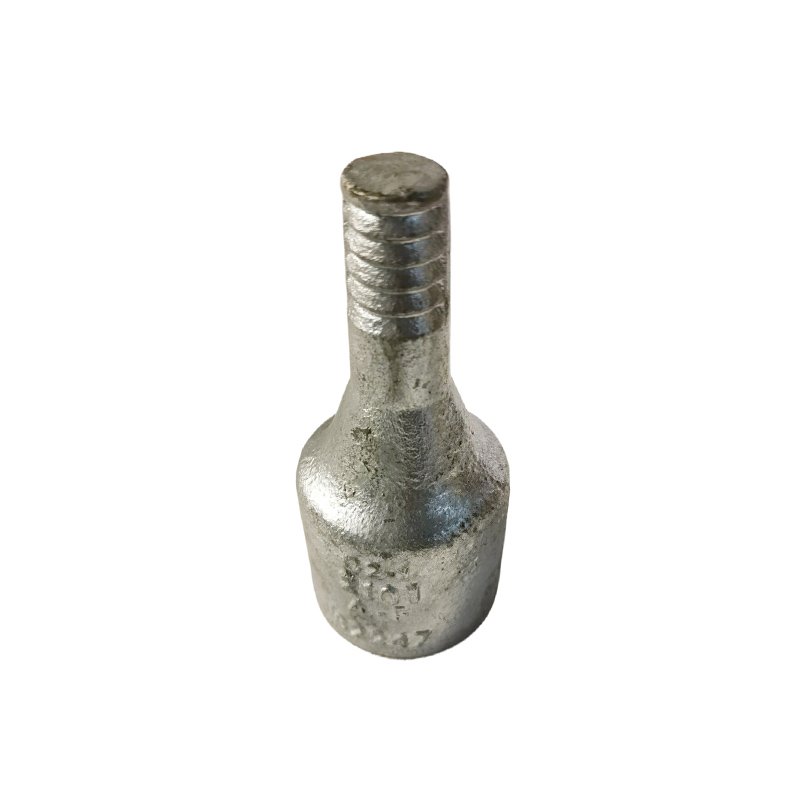

We mark the rated load and the torque on the casting, so an inspector knows what the clamp is supposed to be doing.

For safety-critical installations, we recommend a sample removal after a few years and a dye penetrant check at the jaw. It is inexpensive and it finds the fatigue cracks that a visual inspection misses.

Clamps Against Other Hanging Methods

A beam clamp is one of four ways to hang something from a steel beam, and it is worth knowing when it is the wrong one.

Welding a bracket is stronger and permanent, and it needs a hot work permit, a welder and a coating repair. On an operating plant, that permit is often the reason a clamp is used instead.

A drilled anchor is strong and permanent, and it puts a hole in the beam flange, which a structural engineer may not allow in a tension zone.

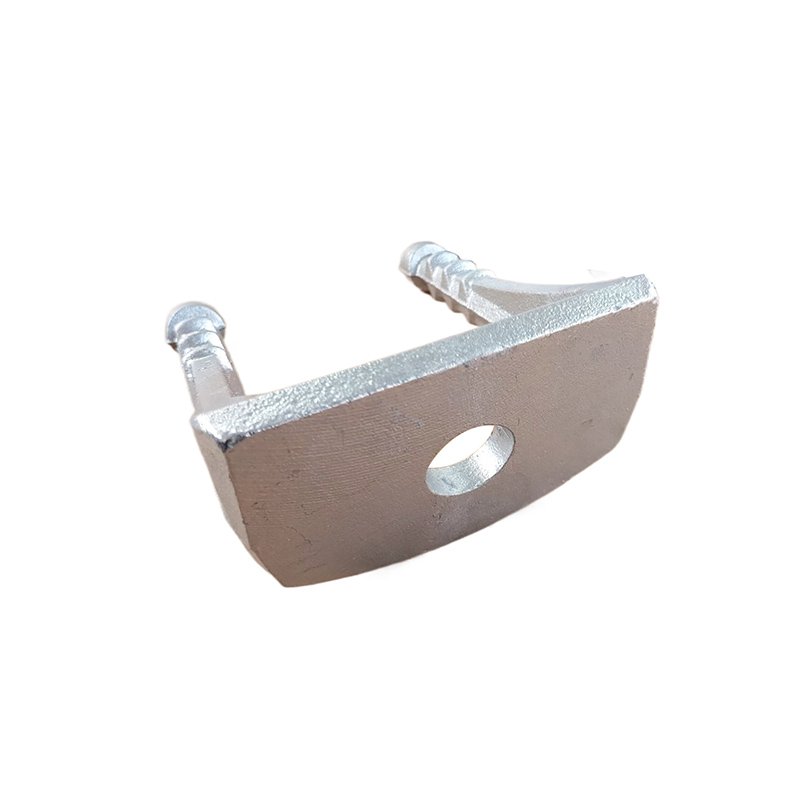

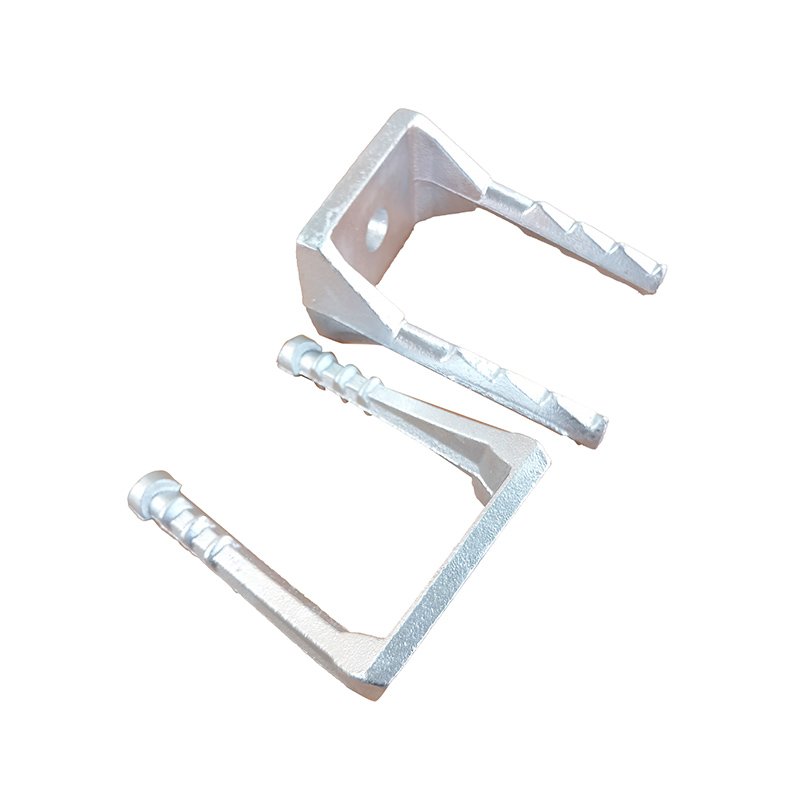

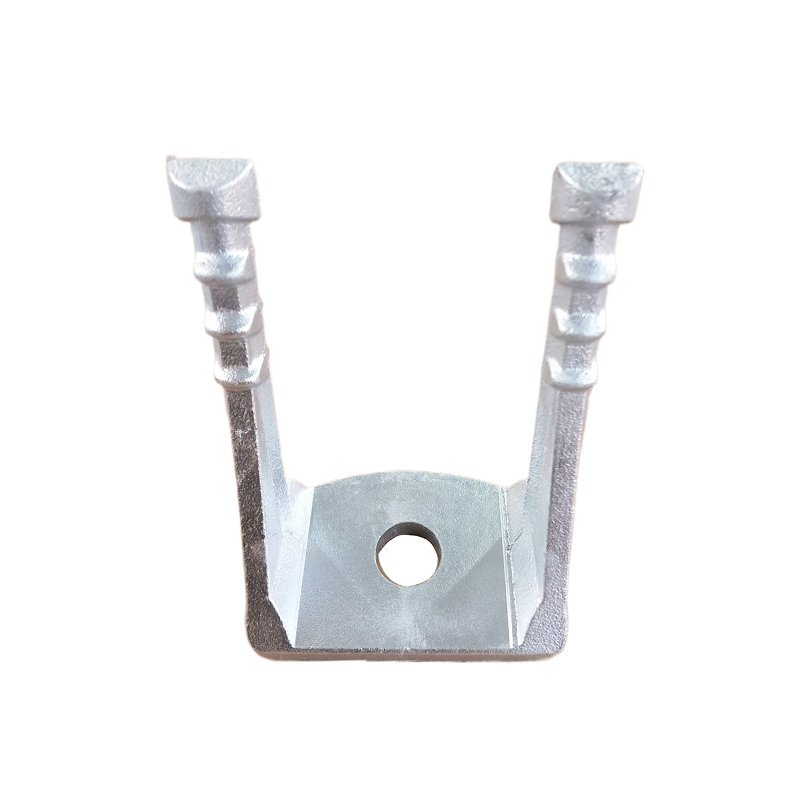

A cast-in channel is the best solution and has to be designed in before the concrete is poured.

The clamp is the retrofit answer: no hot work, no drilling, installed in minutes. Its limitation is that it depends on friction, and friction depends on torque and surface condition, which is why it is the only one of the four whose capacity changes with how well it was installed.

Re-galvanizing and Repair on Site

A clamp that has been in service for twenty years will have a coating that is part-worn, and taking it off for re-galvanizing means dismantling whatever it holds.

For a clamp, the practical answer is usually replacement rather than repair, because the part is cheap and the dismantling is not. The exception is a clamp that carries a load nobody wants to release, where a zinc-rich cold repair coating on the damaged area will extend the life by several years.

What should not be done is welding a crack in a clamp that is carrying load. Ductile iron welds poorly, the repair is not the same material, and a clamp is a part whose failure drops something. If a clamp is cracked, it is replaced.

We keep patterns for obsolete clamps for exactly this reason: a utility that has 400 of a clamp in service will eventually need 20 more, and a new pattern for 20 pieces is hard to justify.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

What load can a single clamp carry?

From 1 kN for a light channel clamp to 30 kN for a heavy beam clamp, depending on the design and the flange. We rate each pattern individually.

Can the clamp be used on a concrete beam?

Only with a cast-in channel or a drilled anchor. A clamp needs a flange to grip, and concrete does not provide one.

Does the clamp damage the beam coating?

A serrated jaw will mark the coating at the contact point. For coated beams, specify a smooth jaw and derate the capacity.

What torque should be applied?

It is marked on the casting and stated on the packing list. It is specific to the bolt grade and the jaw design, so it is not interchangeable between clamps.

Can you supply the bolts?

Yes, as a matched set, because the torque figure assumes a specific bolt grade and lubrication.

How often should clamps be inspected?

Visually after the first year, then at the interval your maintenance regime sets. Any clamp with a visible slip mark should be replaced, not re-tightened.
