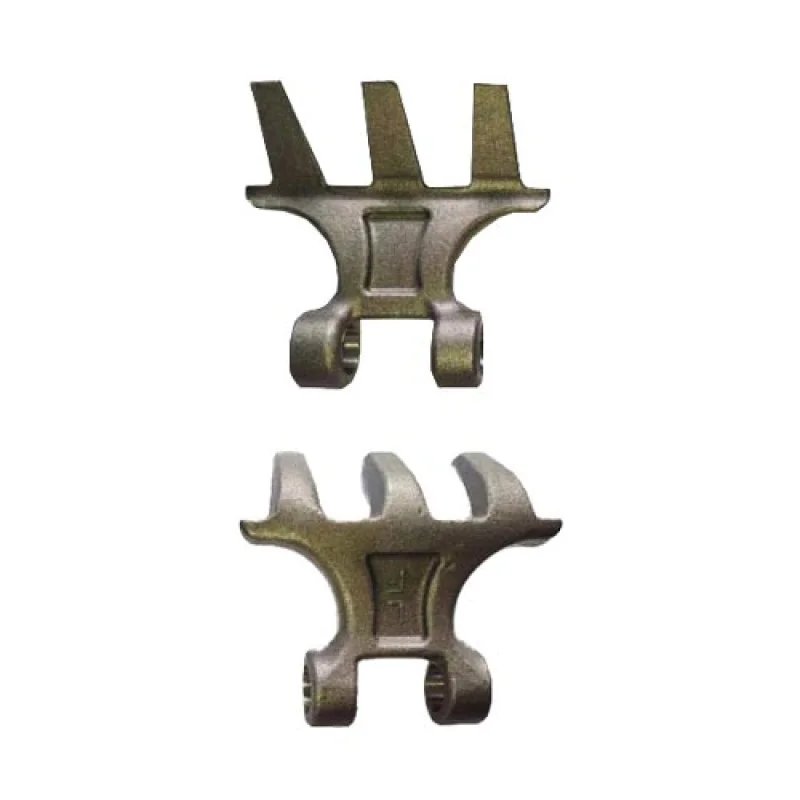

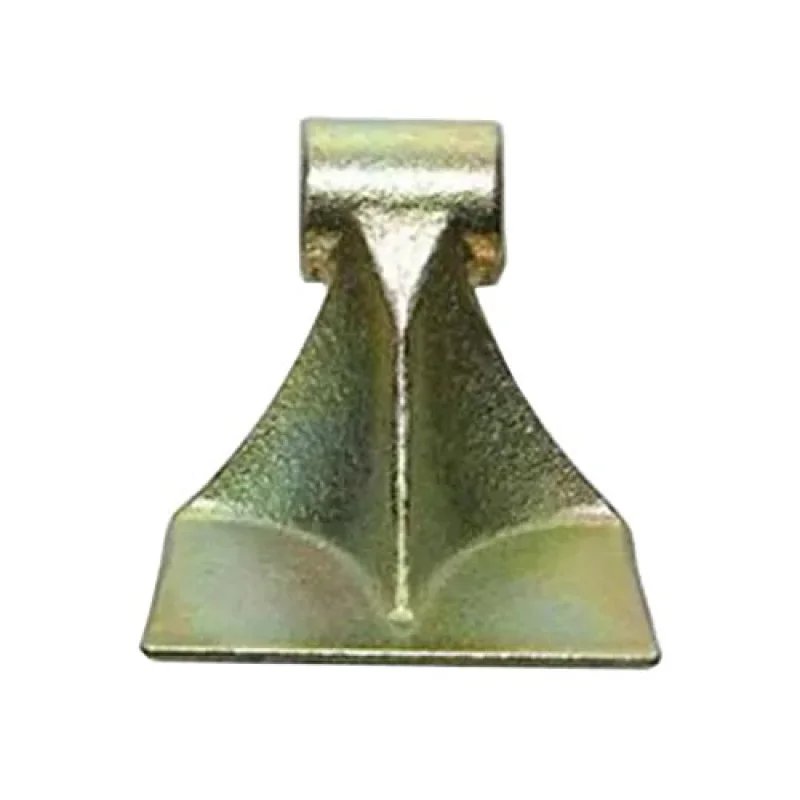

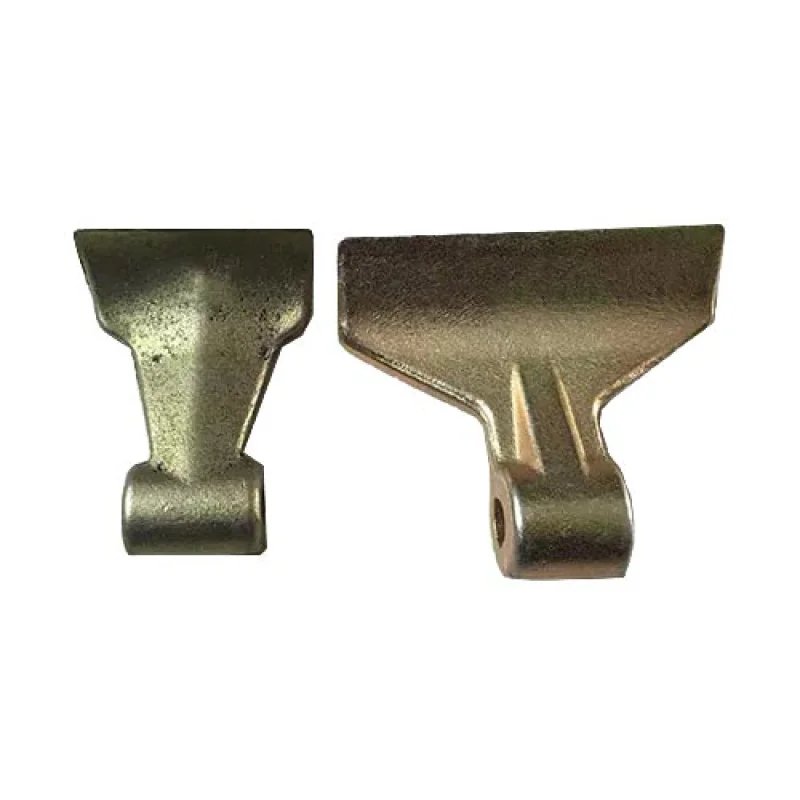

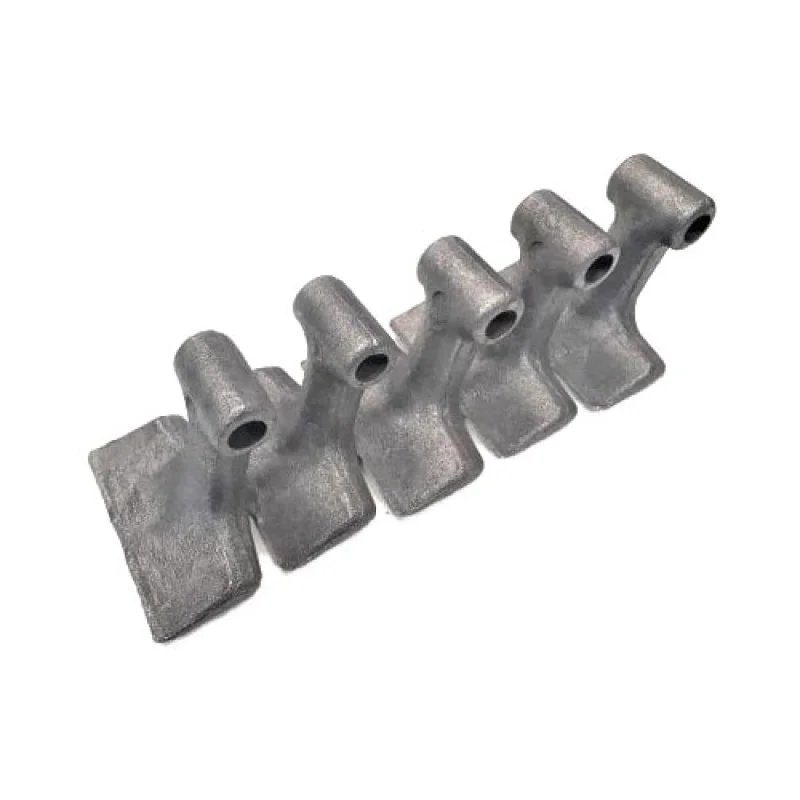

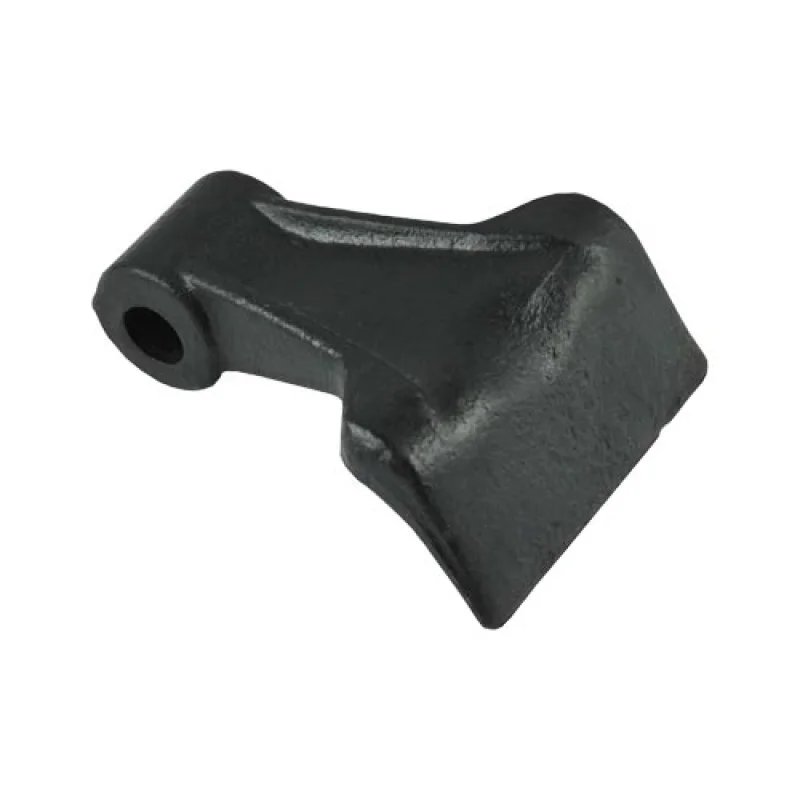

Hammer Claw Castings for Crushers and Biomass Shredders

What a Hammer Claw Has to Survive

A hammer claw in a grain crusher or biomass shredder does not fail dramatically — it wears. Every hour it spends striking grain, straw or fibrous biomass takes a little material off the working edge, shifts the balance of the rotor a little further, and moves the machine closer to a vibration shutdown and a re-balancing session. Buyers who run crushers for a living judge hammer hardware by three things: how long an edge lasts, how consistently the set weighs, and how fast replacements get back on the rotor.

That is how we build the part. Cast to your drawing — including tooth profile, hole position and the contour your rotor expects — with the material chosen for the duty rather than defaulted. If you are replacing imported claws and the price has crept up year after year, casting is usually the route that brings it back under control, because the tooling is yours and the part is made to your drawing rather than to a catalogue.

Material and Hardness: Matching the Alloy to the Feedstock

Grain crushing and biomass shredding punish differently. Dry grain work hardens the working face gradually; fibrous and woody biomass chews edges and punishes any soft spot. Our standard route is ductile iron — spheroidization above 90% for the impact side of the duty — with options for surface hardening of the working face where feedstock is abrasive. Hardness targets are set with you against the material your machine actually processes; we would rather quote from your feedstock description than from a generic hardness number.

Weight consistency matters as much as hardness. A rotor loaded with claws that vary in weight runs out of balance, and bearing life pays the bill. Castings are weighed per batch, and sets can be matched within the tolerance your rotor spec requires. If you have been re-balancing after every set change, matched sets are usually the fix — not a different alloy.

Reading a Worn Claw: What the Wear Pattern Tells You

A worn claw is a diagnostic tool. Wear concentrated at the leading corner means the claw is striking before the material is fully accelerated — often a rotor speed or feed-rate issue rather than a material one. Even wear across the whole face suggests the duty is well matched and you are simply buying life by the hour. Cracking from the bolt hole outward points at a loose bolt or a hole that was drilled rather than cast, and no alloy choice will fix a joint that moves.

Uneven wear between positions on the same rotor tells another story: the material is not being distributed evenly across the crushing chamber. That is a machine issue, but it changes what you should buy — matched sets with position-specific profiles sometimes outlast a uniform set on machines with a known feed bias. Send us a worn sample and we will tell you what the pattern suggests before quoting.

From Your Sample or Drawing to Bulk Supply

Most hammer claw projects start one of two ways: you send a worn sample of the part you currently buy, or you send the drawing with the tooth profile your machine was designed around. Either way the route is the same — pattern from the sample or drawing, first article with a dimensional and hardness report, your approval, then bulk production on the locked pattern. Repeat orders skip the development steps entirely and run against the approved sample.

One detail worth settling early: whether you want the claws packed as matched sets or loose. Matched sets take a little longer to pack but remove the weighing step from your maintenance routine. Most crusher operators running continuous shifts choose matched sets for that reason alone.

Cost Per Tonne, Not Price Per Piece

The number that actually matters on wear parts is cost per tonne processed, and it is not the unit price. A claw costing 20% more but lasting 40% longer cuts your cost per tonne and your downtime hours at the same time. Downtime usually costs more than the parts: a rotor change takes a shift, and a machine standing idle costs far more than the set of claws going into it.

So when you compare quotes, compare the assumptions: hardness achieved, weight tolerance per set, and how many tonnes the supplier expects per set in your application. Anyone who quotes only a price without asking what you crush is guessing. We ask, because the answer changes the alloy route and the honest life estimate.

Quality Checks Before Anything Ships

Every heat is checked for chemical composition before pouring, and mechanical properties plus metallographic structure are verified on coupons cast from the same melt, so the numbers belong to your parts rather than to a generic lot. Heat treatment is set against the working face requirement and confirmed by hardness testing on each batch, not on a first article only. Dimensional and visual inspection runs 100%, with the working profile gauged against the pattern and wear-critical edges checked for chill and misrun. Castings ship in wooden cases or cartons, packed so a set stays together, which means your maintenance crew receives matched groups instead of a loose mix that has to be sorted against a machine before it can be fitted.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you match the hammer claw I currently use?

Send the worn sample or the manufacturer drawing. We reproduce the profile, hole pattern and weight class, and quote tooling plus unit price — first articles usually follow within a few weeks of drawing approval.

What hardness can the working face reach?

The target is set against your feedstock and agreed before production, verified by hardness testing on each batch. Tell us what you crush and how fast it wears today.

Will your claws fit my rotor without modification?

They are cast to your hole positions and contours, so yes — that is the point of casting to drawing. If your current part needed grinding to fit, that is the tolerance we hold on the casting instead.

What is the typical order size?

Crusher operators usually order by machine set — enough claws for a full rotor change plus a wear-stock buffer. There is no fixed MOQ, and repeat set-orders run on the same approved pattern.

How long should a set last?

It depends on feedstock, throughput and rotor speed, and we will not quote a number without knowing those. What we can do is compare your worn sample's remaining section against a new part and estimate wear rate from your recorded hours.

Do you supply other crusher wear parts?

Yes — liners, anvils and similar wear hardware are cast on the same routes. Ask with your crusher model and parts list; if it is an iron casting, it is probably something we can produce.
