Agricultural Castings for Tillage, Harvest and Livestock

Product Details

Farm machinery breaks differently depending on what it touches. A tine that runs through abrasive soil wears out. A concave segment that meets a stone at speed cracks. A spreader part that sits in slurry corrodes until the section is gone. Treating all three as "agricultural castings" and specifying one grade for the lot is how a buyer ends up with parts that are too soft in one place and too brittle in another.

Agricultural Parts Fail in Four Ways, Not One

Wear is the first and the most common. Soil is an abrasive, and the wear rate depends on the sand and silt fraction, the moisture and the pressure at the contact point. A part in sandy loam can lose 2 mm of section in a season; the same part in clay may last five.

Impact is the second. A stone under a mower blade, a rock in a combine header, a frozen clod under a roller. Impact does not care about hardness, it cares about toughness, and a part optimized for wear resistance is usually the one that cracks.

Corrosion is the third, and it is the one buyers underestimate. Slurry, manure, ammonium nitrate fertilizer and washdown water are all aggressive, and a part that is structurally adequate will still fail when the section thins from 8 mm to 4 mm in three years.

Fatigue is the fourth. A bracket that holds a cultivator tine sees a hundred thousand small reversals in a season, and it fails at a stress well below the material's static strength. This is where ductile iron earns its price over grey.

Tillage: Wear Is the Specification

For discs, shares, points, landsides and seed boots, the question is not strength but how long the working edge keeps its shape. Three approaches, in ascending order of cost and life.

Chilled grey iron, where the mould surface is chilled so the skin freezes as white iron while the core stays grey. The chilled face reaches 400 to 500 HBW and the tough core stops it shattering. It is the cheapest way to get a wear-resistant edge and the standard for many seed drill parts.

High-chrome white iron, at 550 to 650 HBW, for the parts that see the most abrasive soil. It is brittle, so it belongs on a part in compression, not on one that takes bending.

Ductile iron with a hardened insert or a hardfaced edge, for parts that need both toughness and wear resistance. The body absorbs impact, the edge resists abrasion, and the two are joined by casting the insert in place rather than welding it on.

Harvest: Impact and Clearance

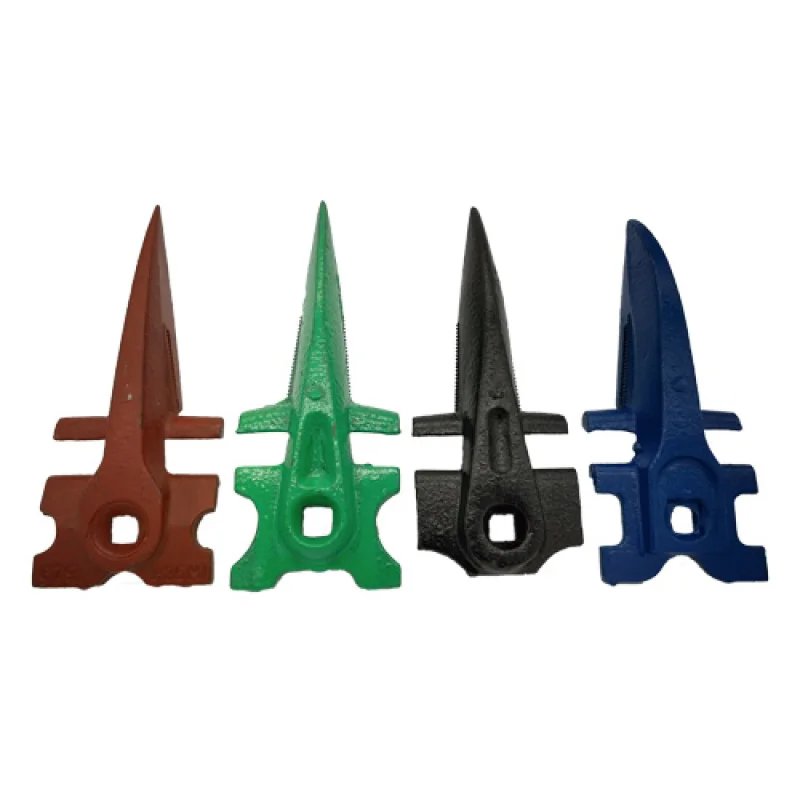

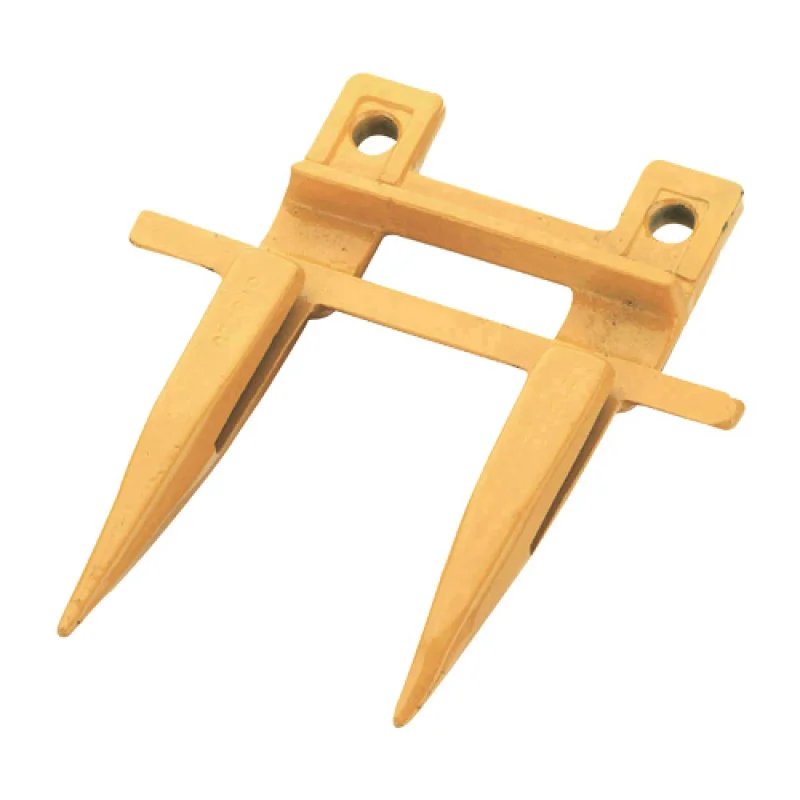

Header parts, concave segments, rasp bars, chopper knives and auger flights all live with impact. The design rules are different from tillage: you want a section that yields locally rather than propagating a crack, and you want no sharp internal corner where a crack can start.

Clearance matters as much as material. A concave segment that is 2 mm out of position changes the threshing gap and the crop comes through unthreshed or cracked. That is a casting tolerance question, not a metallurgy one, and it is why we machine the mounting ears on these parts rather than leaving them as-cast.

Replaceable sections are worth designing in from the start. A full-width concave that must be replaced as a unit is expensive and slow to fit; four segments on a common carrier cost less to run and can be swapped in the field.

Livestock: Corrosion Decides the Alloy

In a barn, the environment does the damage. Slurry is mildly acidic and carries sulphate-reducing bacteria that consume iron. Feed acids from silage sit on surfaces for weeks. Washdown water carries grit into every crevice.

Ductile iron with a proper coating is the practical answer for structural parts: slats, brackets, scrapers, gate hardware. The coating matters more than the alloy, and the coating that works is not paint. Two-pack epoxy at 200 micrometres, or hot-dip galvanizing at 80 micrometres plus a seal coat, will give five to eight years. A single coat of enamel gives two.

Where the part is a wear item in direct slurry contact, a chromium-bearing white iron will outlast coated ductile by a wide margin even though it costs three times as much, because it does not depend on a coating that gets abraded away.

Why Farm Parts Are Cast Rather Than Fabricated

Fabrication wins when the part is flat and the volume is low. Casting wins when the shape is three-dimensional, when the section has to change, or when the part has to be produced in the thousands at a price the aftermarket will bear.

A cultivator bracket fabricated from plate needs bending, welding, drilling and a jig. The same bracket cast needs a pattern and a mould, and comes out with the boss, the rib and the hole in the right relationship. At 500 pieces a year, the casting is usually cheaper; at 50, the fabrication is.

The other casting advantage is repairability of supply. A farmer who breaks a bracket on a Saturday needs one on Monday. A cast part from a stored pattern can be poured in a week; a fabricated part needs the plate, the drawing and a welder who is available.

Grade Selection Without a Metallurgist

Most buyers do not want a lecture on graphite morphology, they want to know which grade to write on the drawing. Here is the short version we give.

If the part slides against soil and the working edge is the wear surface, use a chilled or white iron, and accept that it is brittle.

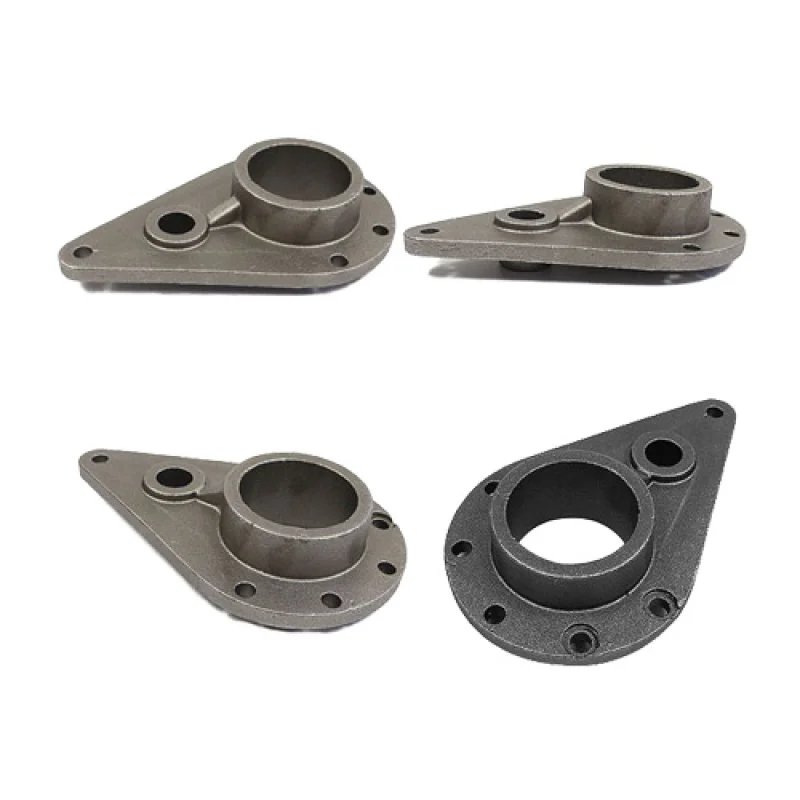

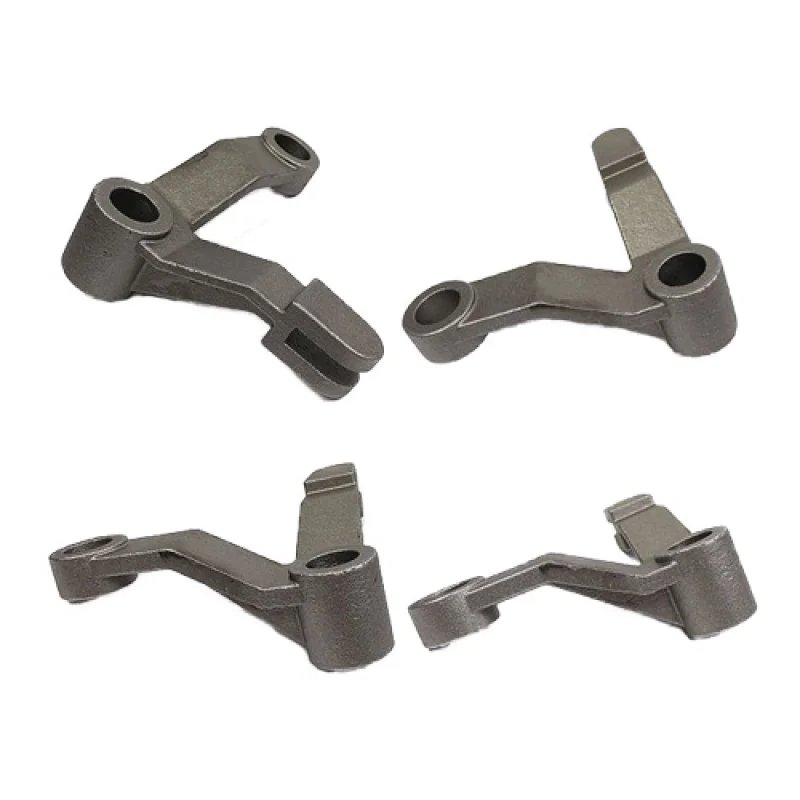

If the part is a bracket, a housing, an arm or anything with a bolt hole that must not crack, use ductile iron at 450 to 500 MPa with 15 percent elongation. It bends, it does not shatter, and it welds badly but it will not need to.

If the part is a cover, a guard, a weight or a base that only has to hold shape, use grey iron at 200 to 250 MPa. It is cheaper, it machines faster and it damps vibration better.

If the part is in a slurry tank and the loads are modest, use ductile iron with a proper coating and design the section 2 mm thicker than the stress calculation says, because the section will thin.

Field Repair and the Value of a Standardized Bolt Pattern

Farm equipment is repaired in a shed, at night, with the tools that are in the truck. A casting that needs a special puller will be replaced with a piece of angle iron and two bolts, and the machine will run badly until the next breakdown.

So we design for the field. Bolt holes on a standard pitch, accessible from the outside, with enough clearance for a socket rather than a spanner. No blind tapped holes that fill with soil. No feature that requires the adjacent assembly to be removed first.

Where a customer has a fleet of mixed vintages, we will cast one pattern with two or three mounting variants, so the same body fits several machine generations. It costs a little more in tooling and saves a lot in inventory.

Coating Systems That Survive Washdown

Three systems, and the choice depends on how the part is cleaned.

Hot-dip galvanizing at 70 to 90 micrometres for structural parts that are washed but not immersed. It is tough, and it self-heals at scratches through the zinc's sacrificial action, and it lasts five to eight years in a barn.

Two-pack epoxy at 150 to 250 micrometres for parts in contact with slurry or fertilizer. It is a barrier coating, so any damage is a starting point for corrosion, which is why the surface preparation matters more than the thickness.

Zinc-rich primer plus epoxy topcoat for the worst cases, such as spreader bodies and slurry pump parts. It combines sacrificial protection with a barrier, and it costs about twice the epoxy alone, which is still less than replacing the part.

One casting detail makes all three work better: no sharp edges. Coating pulls back from a sharp corner and leaves the thinnest film exactly where corrosion starts. A 2 mm radius costs nothing in the pattern and adds years to the coating.

Reference Price Range and Minimum Order

Reference price range: US$0.10 to 100.00 per piece, FOB Qingdao. Minimum order quantity: 500 pieces per item. The final unit price is quoted against your drawing and depends on part weight, material grade, moulding process, machining allowance and tooling amortisation. Reference prices are valid until 31 December 2027.

Frequently Asked Questions

Can you cast a replacement for a part that is no longer available?

Yes, and it is a large part of this work. Send the worn part even if it is deformed; we measure it, correct the obvious wear, and cast a sample for trial fitting before the batch.

Do you supply the rubber and plastic components too?

No. We cast and machine the iron and can source standard fasteners, but moulded parts and proprietary hardware stay with your existing supplier.

What is the wear life of a chilled iron share compared with a steel one?

In abrasive soil, typically two to three times, depending on the sand content. In sticky clay the difference narrows, and a steel share that bends without breaking may be the better choice.

How do you handle a part that must be both wear resistant and tough?

Bimetal casting: a white iron working face cast onto a ductile body. It costs more than either material alone and is still cheaper than replacing the whole part twice a season.

What is your minimum order for agricultural castings?

No fixed minimum, but tooling spreads better above 300 pieces. Below that we will still quote and show you where the crossover sits.

Can parts be marked with a part number for field identification?

Yes, cast in raised characters on a non-wearing face. It survives paint, it survives galvanizing, and it is the fastest way for a fitter to confirm they have the right part.
